PS2012 High-Stability Portable Power Supply
Description:
The power supply PS2012 is a high-stability portable powersupply specially designed for fluxgate sensors. It not only provides isolatedultra-low noise ±12V power supplies but also performs DC/AC filtering on theXYZ outputs of the sensor. These two features effectively reduce the outputnoise of high-precision fluxgate sensors. Rigorously tested, the PS2012 powersupply is a full replacement for the PSU1 power supply from BARTINGTON, withsuperior noise performance on its ±12V output voltage.
Equipped with a built-in rechargeable battery, the PS2012power supply can support the normal operation of a fluxgate sensor for about 16hours.
PS2012Power Supply Specification
Model | PS2012 |
Power Supply Specification | |
Number of input sensors | 1 (could be connected to a 3-Axis/Single-Axis Fluxgate Sensor) |
Power Supply Output Voltage | Ultra-low noise isolated ±12V, ±100mA (for fluxgate sensor power supply) |
Frequency Response (-3dB) | DC 至 9.5kHz (DC coupling); 0.1Hz 至 9.5kHz (AC 耦合) |
Internal Measurement Noise Floor | <1pT/√Hz at 1Hz (battery powered) <3pT/√Hz at 1Hz (AC powered with mains charger connected) |
Maximum Load (All Output Terminals) | 50 kΩ per channel |
Filter Options | DC/AC |
Sensor Input Signal | Single-end / Differential |
Fluxgate Sensor Requirements | |
Number of Axes | ≤3 |
Analog Output Signal | Single-end / Differential |
Analog Output Voltage Range | ≤±10V |
Probe Connector | Hirose RM15TRD10P Multi-core Connector |
Power Supply | ±12V |
Power Supply Host Specifications | |
Operating Temperature | -20°C to +50°C (Charging: 0°C to +40°C) |
Storage Temperature | Long-term: -20°C to +35°C; Short-term: -20°C to +50°C; Battery Excluded: -20°C to +65°C |
Humidity | 0–90% Non-condensing |
Charging Power Supply Requirement | 12V |
Battery | 8800mAh Rechargeable Lithium-ion Battery |
Battery Operating Time | 16 hours typical |
Battery Charging Time | Approx. 6 hours for a full charge |
Battery Charging Port | 2.1mm Port |
Filtered Analog Output Connector for Sensor | 3 BNC Connectors (X, Y and Z Axis) |
Housing Material | Aluminum Alloy |
Dimensions (W x H x D) | 106 x 65 x 148mm |
Weight (Including Built-in Battery) | 600g |

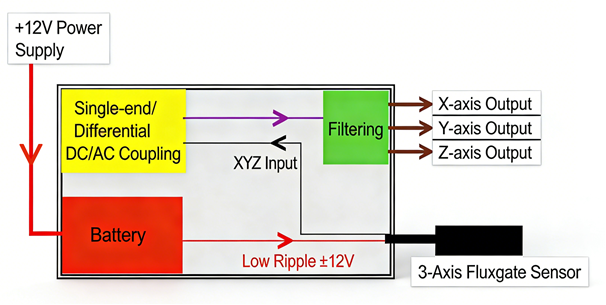

Schematic Diagramfor the Operation of PS2012 Power Supply
