GF503 Three-Axis Fluxgate Magnetometer
Description:

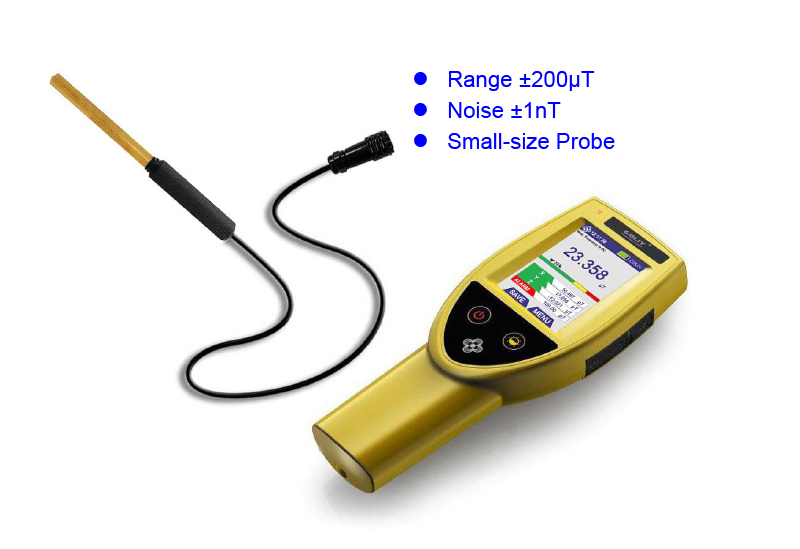

Three-Axis Fluxgate Magnetometer GF503, made by COLIY, has the excellent ergonomic design with the latest electronic technology, and it’s one of best choices to measure low-intensity magnetic field. This handheld fluxgate magnetometer can be used in geomagnetism detection, wrapped detection, traffic monitoring, measuring residual magnetism, low-intensity magnetic field measurement, etc.
Three-Axis Fluxgate Magnetometer GF503 adopts the micro-high-precision three-dimensional fluxgate weak magnetic sensor developed by COLIY, which has the following characteristics: the probe cross section is only 6x6mm; very low temperature drift of ±20ppm/℃; very low zero drift of ±0.2nT/℃; and low noise of ±1nT.

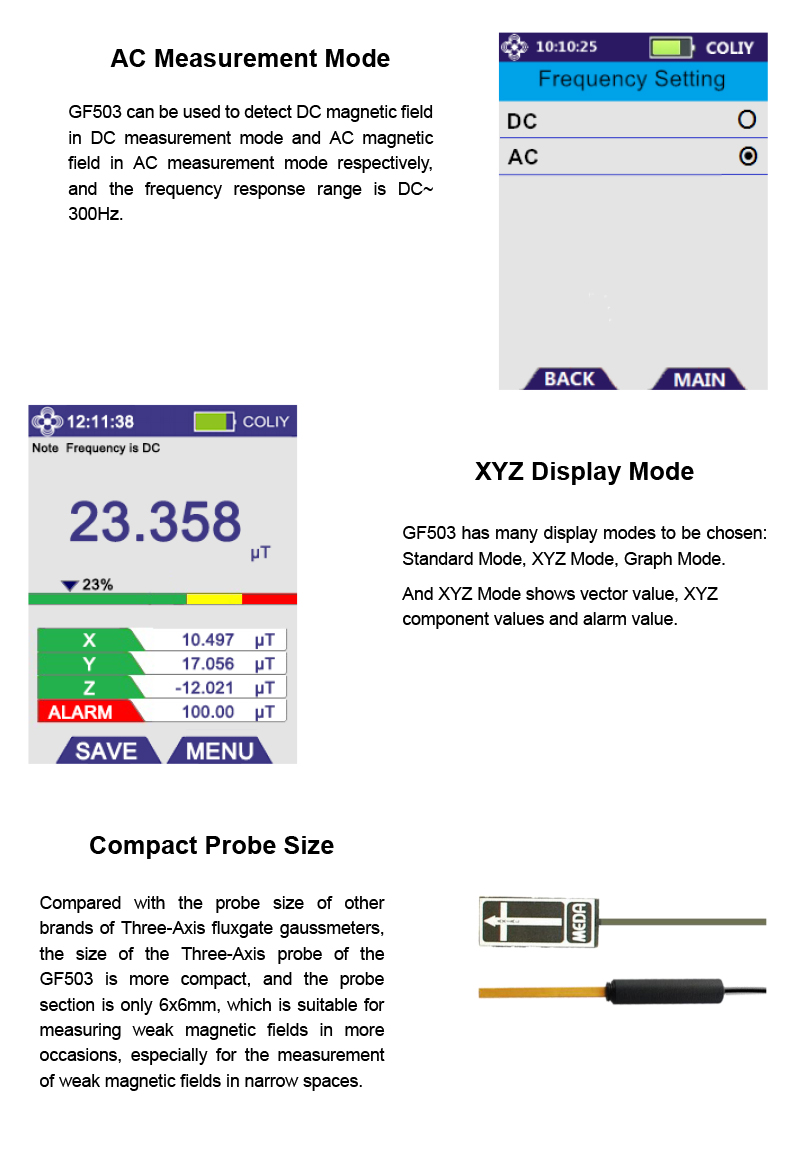

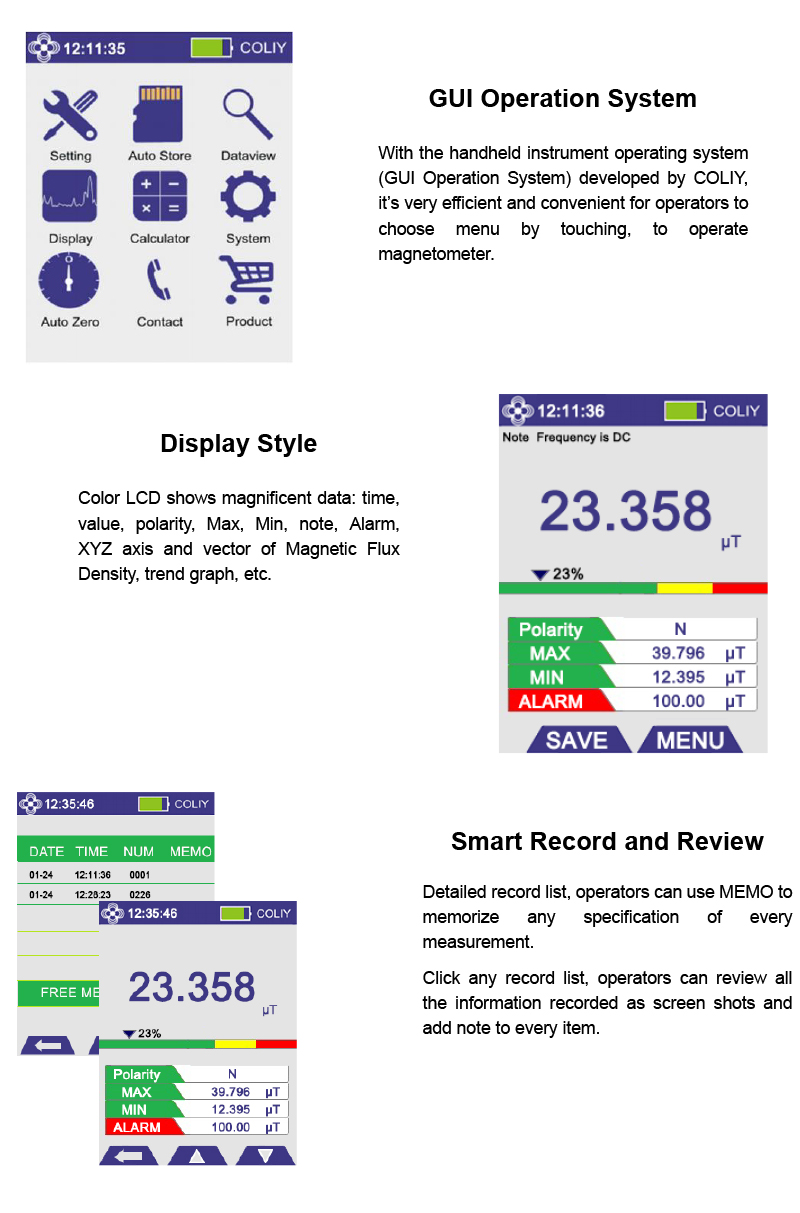

Magnetometer GF503 allows DC measurements with a basic accuracy of 0.5%, resolution of 1nT and range of ±200μT. And Frequency response is from DC to 300Hz. GF503 boasts with an industrial class 3.2 inches touch panel display that enables customers’ instantaneous and simultaneous measurement results [Max/ Min/ Peak/ Hold/ Alarm/ Polarity, XYZ axis and vector of Magnetic Flux Density, TrendGraph, etc.].
Magnetometer GF503 has passed the CE certification and EMC (Electromagnetic Compatibility) test.
Features | |
l Ergonomically designed l 3.2 inches color touch LCD l Full 5 display digits l Display XYZ axis and vector l Max/Min/Hold Function l Display trend graph & Alarm l Probe size only 6x6x80mm | lXYZ Axis Range: ±200μT l DC Basic Accuracy: 0.5% l Noise: ±1nT l DC/AC measurement mode switch l Frequency response: DC- 300Hz l Low temperature drift ±20ppm/℃ l Low zero drift ±0.2nT/℃ |
GF503 Magnetometer Specification:
Model | GF503 | ||
Measurement Specification | |||
Accuracy/Axis | DC | ±0.5% Reading± 0.1% FS | |
AC | ±1% Reading ± 0.1% FS | ||
Range | X, Y, Z | DC | ±200μT |
AC* | ±140μT | ||
Vector R | DC | ±346μT | |
AC* | ±242μT | ||
Finest Display Resolution | 0.1nT | ||
Measurement Noise | ±1nT | ||
Display Digits | 5 digits | ||
Frequency Response [fT] | DC - 300Hz | ||
Absolute Zero offset | <±50nT | ||
Typical Temperature Coefficient | <±100ppm/℃, for regular probes <±20ppm/℃, for probes with temperature compensation | ||
Zero Drift | <±2nT/℃, for regular probes <±0.2nT/℃, for probes with temperature compensation | ||
Hysteresis | <5nT for exposure to up to 2 x full scale | ||
Front Panel | |||
Screen | 3.2 inches color resistive touch LCD,320x240 Pixel | ||
Units | Gauss(G), Tesla(T), Amperes per meter (A/m) | ||
Display Update Rate | 3 readings/second | ||
Display Mode | DC, AC, Vector, XYZ Components, MAX, MIN, Trend Graph, Alarm, Polarity Indication, etc. | ||
Probe | |||
Start-up Time | 150 ms | ||
Warm-up Time | 30 min | ||
Probes | See "Probe Specifications" for details. | ||
Probe Cable Length | Standard 1m | ||
USB Interface | |||
Function | 1, Communication Interface: to connect PC with gaussmeter host for monitoring the measurement; 2, Charging interface: to connect PC or mobile power with gaussmeter host for charging | ||
Software/ Driver | SMART PC Software without any driver | ||
Host Specifications | |||
Operating Temperature | +15°C to +35°C (Rated Accuracy) -10°C to +60°C (Reduced accuracy) | ||
Storage Temperature | - 20°C to +75°C | ||
Ambient Magnetic Field | <100G (10mT) | ||
Battery | Rechargeable 4500mAH Li-ion | ||
Operating Battery Life | 8hours; Can be charged by AC power or portable battery | ||
Dimension | 238 mm W × 95 mm H × 42 mm D | ||
Weight | 350g | ||
Certification | CE Certification, EMC Certification | ||
“*”:AC Range mentioned above refers to AC magnetic field measurementrange after DC magnetic field is shielded, so if DC magnetic field is not shielded, and users want to measure magnetic field in AC measurement mode, AC Range is equivalent to the value that 0.7 times of DC Range minus DC magnetic field intensity. [SQRT(2)/2 ≈ 0.7]
ProbesSpecification
Model GF503 Magnetometer Probes | ||||||
Probe Model | XYZ Range1 | Frequency Response | Temperature Coefficient | Size (mm) | DC Accuracy ( 25°C) | Stem material |
Y08L100GF503 Y08L100GF503T | 2G (200μT) | 10μG (1nT) | DC-300Hz | 80*6*6 | ±0.5% Reading ± 0.1% FS | Copper |
Note:
1, Option “T” :Temperature sensor contained Probe, has the function of temperaturecompensation, and the temperature coefficient is <±20ppm/℃; zero drift is ±0.2nT/℃.

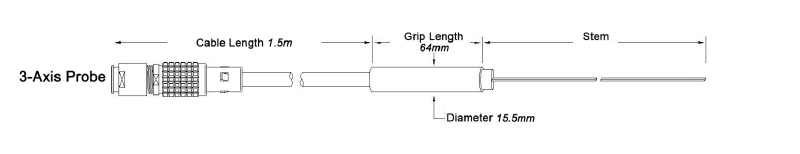

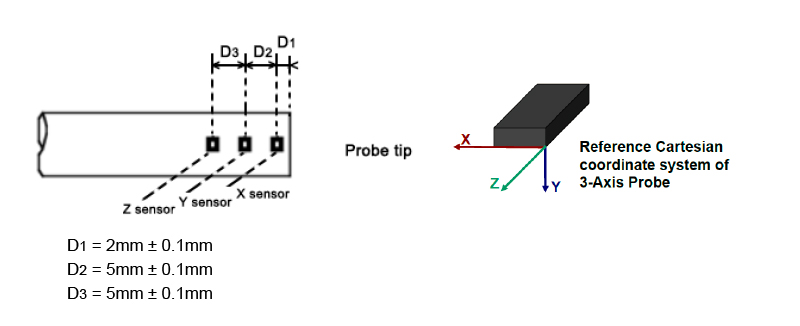

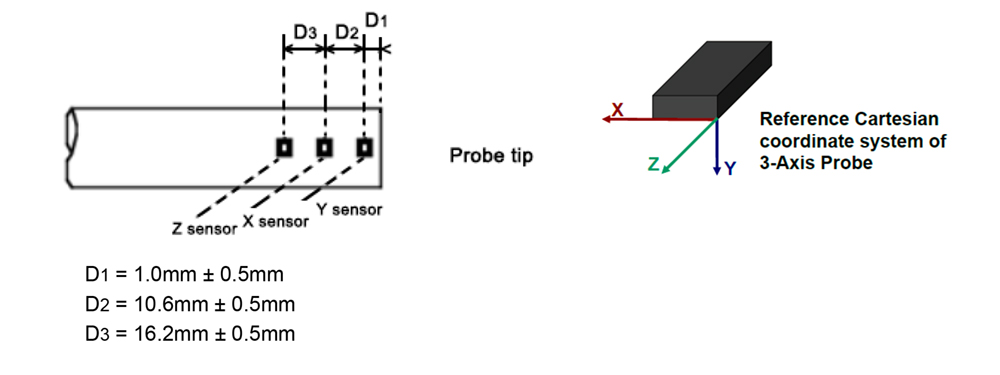

2,Eachaxis sensing point and direction of 3-axis probe:
Please contact sales@coliy.com for the latest detailed datasheet.
