- 3D magnetic field measurement
- Probe’s thickness only 2.5mm
- Probe’s width only 5mm
- Measurement range up to 600μT
- Resolution 10nT
- DC Accuracy 0.8%
- Full 5 display digits
- Frequencyresponse: DC to 80Hz
COLIY®--Excellent Solution for Magnetic Field Measurement | ||||||
High Magnetic Field (0-10T) Measurement | ||||||
Model | Principle | Type | Axis | DC Accuracy | Range | Resolution |
HALL | Sensor | 1 | 0.05% | 15T | TC of sensitivity: 30ppm/K | |
HALL | Handheld | 1 | 2% | 2T | 10μT | |
HALL | Handheld | 1 | 0.8% | 10T | 1μT | |
HALL | Handheld | 1 | 0.8% | 150mT | 0.1μT | |
HALL | Handheld | 3 | 0.8% | 10T | 1μT | |
HALL | Desktop | 1 | 0.05% | 10T | 1μT | |
HALL | Desktop | 3 | 0.1% | 10T | 1μT | |
GSP301D | HALL | Transmitter | 1 | 0.5% | 10T | 1μT |
GSP303D | HALL | Transmitter | 3 | 1% or 0.2% | 10T | 1μT |
Low Magnetic Field(0- 2mT) Measurement | ||||||
Gaussmeters for Low Magnetic Field | ||||||
Model | Principle | Type | Axis | DC Accuracy | Range | Resolution |
Fluxgate | Sensor | 3 | 0.5% | 1500μT | Output ±10V | |
Fluxgate | Transmitter | 3 | 0.2% | 1mT | 0.1nT | |
GMR | Handheld | 1 | 0.8% | 600μT | 10nT | |
GMR | Handheld | 3 | 0.8% | 600μT | 10nT | |
Fluxgate | Handheld | 1 | 0.5% | 200μT | 1nT | |
Fluxgate | Handheld | 3 | 0.5% | 200μT | 1nT | |
Fluxgate | Handheld | 1 | 0.5% | 1mT | 0.1nT | |
Fluxgate | Handheld | 3 | 0.25% | 1mT | 0.1nT | |
Fluxgate | Desktop | 3 | 0.1% | 1mT | 0.01nT | |
Note: 1T= 10kG; 1mT= 10G; 1μT= 10mG; 1nT= 10μG | ||||||

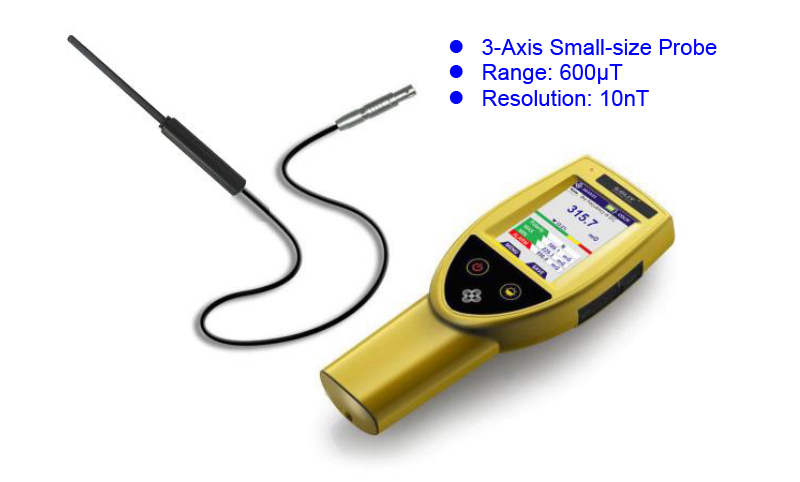

GMR63 3-Axis Low Magnetic Field Gaussmeter
Description:
Adopted a new type of magnetic field sensor, GMR63 3-Axis Low Magnetic Field Gaussmeter could accurately measure low magnetic fields, such as magnetic field testing of air cargo, the geomagnetic field, the residual magnetic field of the workpiece, and the environmental magnetic field. GMR63 gaussmeter boasts with an industrial class 3.2 inches touch panel display that enables customers’ rich measurement results (Max/ Min/ Hold/ Alarm, XYZ axis and vector of Magnetic Flux Density, anda Trend Graph etc.).
There is a unique feature for 3-axis probe of GMR63 gaussmeter: With the MEMS manufacturing technology, 3-axis probe provides very high spatial resolution and orthogonality accuracy, and the thickness of 3-axis probe is only 2.5mm, and the width of 3-axis probe is only 5mm. Gaussmeter GMR63 could fulfill many kinds of applications of institutes, universities and high technology enterprises.
GMR63 gaussmeter allows measurements up to 600μT with a DC basic accuracy of 0.8%, the resolution of 10nT, and the frequency response of DC~ 80Hz.Temperature sensor-contained probes (probes with built-in temperature sensor) have the function of temperature compensation; temperature sensor-contained probes are strongly recommended for better precision and stability when the temperature changes.
GMR63 gaussmeter has passed the CE certification and EMC (Electromagnetic Compatibility) test.
Features | |

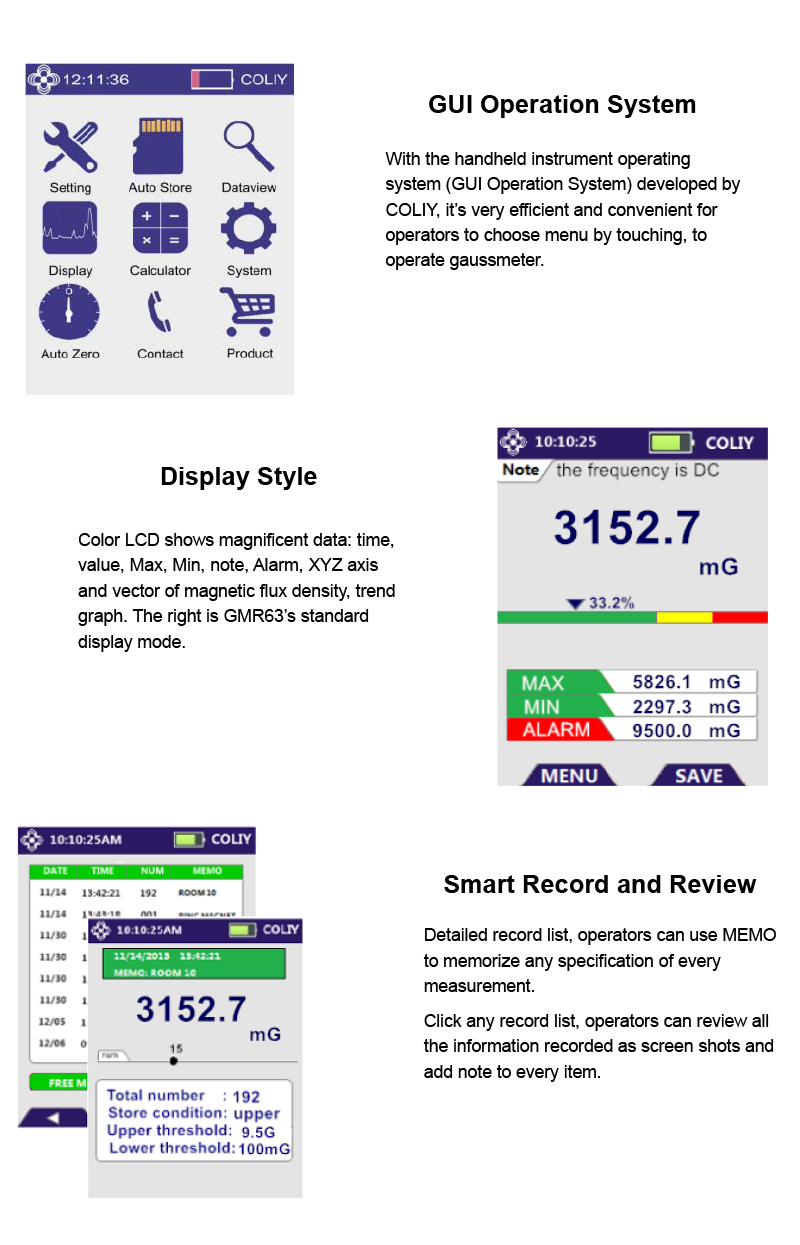

l 3D magnetic field measurement lErgonomically designed l GUI Operation System l 3.2 inches color touch LCD l Max/Min/Hold Function l Smart record and review l Display XYZ axis and vector | l Probe’s thickness only 2.5mm l Probe’s width only 5mm l Measurement range up to 600μT l Resolution 10nT lDC Accuracy 0.8% lFull 5 display digits l Frequency response: DC to 80Hz |
GMR63 Specification
MODEL | GMR63 |
Measurement Specification | |
Accuracy/Axis (DC) | ±0.8% |
Range/Axis | 600μT (6G) |
Resolution | 10nT (0.1mG) |
Display Digits | 5 |
Frequency Response [fT] | DC - 80Hz |
Typical Temperature Coefficient | <±500ppm/℃ (Regular 3-axis probe) <±100ppm/℃ (Probe with temperature sensor) |
Front Panel | |
Screen | 3.2 inches color resistive touch LCD, 320 x 240 Pixel |
Units | Gauss(G), Tesla(T), Amper per meter(A/m) |
Display Update Rate | 3 readings/second |
Display Mode | DC, AC, XYZ, MAX, MIN, Alarm, etc. |
Probe | |
Probes | See "Probe Specifications" for details. |
Probe Cable Length | Standard 1.5m |
USB Interface | |
Function | 1, Communication Interface: to connect PC with gaussmeter host for monitoring the measurement; 2, Charging interface: to connect PC or mobile power with gaussmeter host for charging |
Software/ Driver | SMART PC Software without any driver |
Host Specifications | |
Operating Temperature | +15°C to +35°C(Rated Accuracy) -10°C to +60°C(Reduced accuracy) |
Storage Temperature | - 20°C to +75°C |
Ambient Magnetic Field | <100G (10mT) DC |
Battery | Rechargeable 4400mAH Li-ion |
Operating battery life | >16 hours(Standard Testing Environment) |
Dimension | 238 mm W × 95 mm H × 42 mm D |
Weight | 350g |
Certification | CE Certification, EMC Certification |
Probes Specification
Model GMR63 Gaussmeter Probe | ||||||

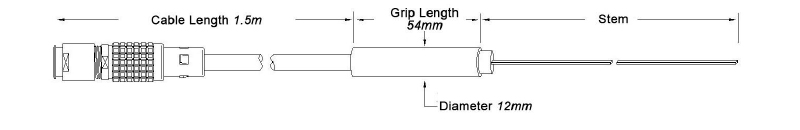

Probe Model | Range | Frequency Response | Stem Dimension (mm) | Operating Temp. (°C) | DC Accuracy (25°C) | Stem Surface Material |
Low Field Y06L150GMR63 Y06L150GMR63T | 6G (600μT) | DC - 80Hz | 55*5*2.5 | -20 - +60 | ±0.8% | Plastic |
Note:
1,Option “T”: Temperature sensor contained Probe, has the function of temperaturecompensation, and the typical temperature coefficient is <±100ppm/℃;

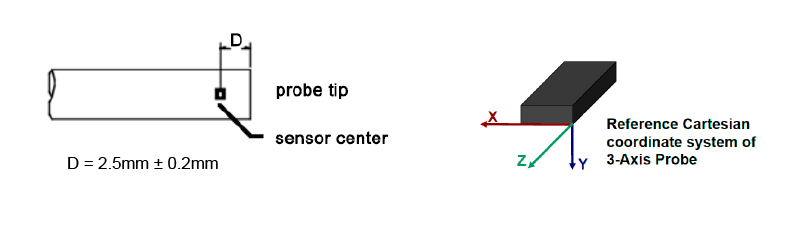

2,The position of sensor center & each axis sensing direction
Optional Accessories
Model | Descriptions |
SAMRT PC Software | PC SOFTWARE for Gaussmeter |
GHOLD100 | 3-Direction Precision Movement Platform, is made of non-magnetic material. Users fixed the probe on the bracket front-end, and then manually rotate the knob so that the probe moves stably along the X, Y, Z-axis to a certain position and lock fixed. Maximum strokes of XYZ axis are 180mm, 180mm and 280mm, and positioning accuracy is 0.1mm, center load: 20kg; weight: 6.2kg |
The most popular package |
Package Product No. GMR6301: Gaussmeter GMR63 + Probe Y06L150GMR63 |
Description of Probe Type Selection
Y | 06 | L | 150 | GMR63 | T |
PROBE TYPE
A - AXIAL T - TRANSVERSE X - 2 AXIS Y - 3 AXIS
| STEM LENGTH
06 - 6 cm 08 - 8 cm 10 - 10 cm 25 - 25 cm
… | PROBE STYLE
C – CRYOGENIC F – FLEXIBLE H – HIGH TEMP. L – LOW FIELD M – METAL P – PLASTIC U – ULTRATHIN W – WIDE FIELD | CABLE LENGTH
150 – 150cm … | GAUSSMETER MODEL
GMR63 – GMR63 probe
| TEMPERATURE COMPENSATED
T - YES BLANK - NO |
Please contact sales@coliy.com for the latest detailed datasheet.
