- Measurement range up to 600μT
- Resolution 10nT
- DC Accuracy 0.8%
- Full 5 display digits
- Frequency response: DC to 80Hz
COLIY®--Excellent Solution for Magnetic Field Measurement | ||||||
High Magnetic Field (0-10T) Measurement | ||||||
Model | Principle | Type | Axis | DC Accuracy | Range | Resolution |
HALL | Sensor | 1 | 0.05% | 15T | TC of sensitivity: 30ppm/K | |
HALL | Handheld | 1 | 2% | 2T | 10μT | |
HALL | Handheld | 1 | 0.8% | 10T | 1μT | |
HALL | Handheld | 1 | 0.8% | 150mT | 0.1μT | |
HALL | Handheld | 3 | 0.8% | 10T | 1μT | |
HALL | Desktop | 1 | 0.05% | 10T | 1μT | |
HALL | Desktop | 3 | 0.1% | 10T | 1μT | |
GSP301D | HALL | Transmitter | 1 | 0.5% | 10T | 1μT |
GSP303D | HALL | Transmitter | 3 | 1% or 0.2% | 10T | 1μT |
Low Magnetic Field(0- 2mT) Measurement | ||||||
Gaussmeters for Low Magnetic Field | ||||||
Model | Principle | Type | Axis | DC Accuracy | Range | Resolution |
Fluxgate | Sensor | 3 | 0.5% | 1500μT | Output ±10V | |
Fluxgate | Transmitter | 3 | 0.2% | 1mT | 0.1nT | |
GMR | Handheld | 1 | 0.8% | 600μT | 10nT | |
GMR | Handheld | 3 | 0.8% | 600μT | 10nT | |
Fluxgate | Handheld | 1 | 0.5% | 200μT | 1nT | |
Fluxgate | Handheld | 3 | 0.5% | 200μT | 1nT | |
Fluxgate | Handheld | 1 | 0.5% | 1mT | 0.1nT | |
Fluxgate | Handheld | 3 | 0.25% | 1mT | 0.1nT | |
Fluxgate | Desktop | 3 | 0.1% | 1mT | 0.01nT | |
Note: 1T= 10kG; 1mT= 10G; 1μT= 10mG; 1nT= 10μG | ||||||

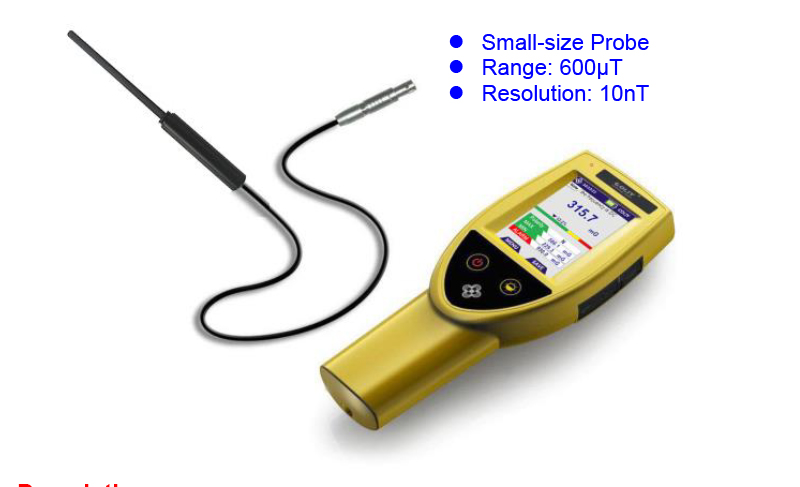

GMR61 Single-Axis LowMagnetic Field Gaussmeter
Description:
Adopted a new type of magnetic field sensor, GMR61 Single-AxisLow Magnetic Field Gaussmeter could accurately measure low magnetic fields, suchas magnetic field testing of air cargo, the geomagnetic field, the residual magnetic field of the workpiece, and the environmental magnetic field. GMR61gaussmeter boasts with an industrial class 3.2 inches touch panel display that enables customers’ rich measurement results (Max/ Min/ Hold/ Alarm, MagneticFlux Density, and a Trend Graph etc.).
The thickness of GMR61 gaussmeter’s probe is only 2.5mm, and the width is only 5mm. Gaussmeter GMR61 could fulfill many kinds of applications of institutes, universities and high technology enterprises.
GMR61 gaussmeter allows measurements up to 600μT with a DC basic accuracy of 0.8%, the resolution of 10nT, and the frequency response of DC~ 80Hz.Temperature sensor-contained probes (probes with built-in temperature sensor) have the function of temperature compensation; temperature sensor-contained probes are strongly recommended for better precision and stability when the temperature changes.
GMR61 gaussmeter has passed the CE certification and EMC(Electromagnetic Compatibility) test.
Features | |

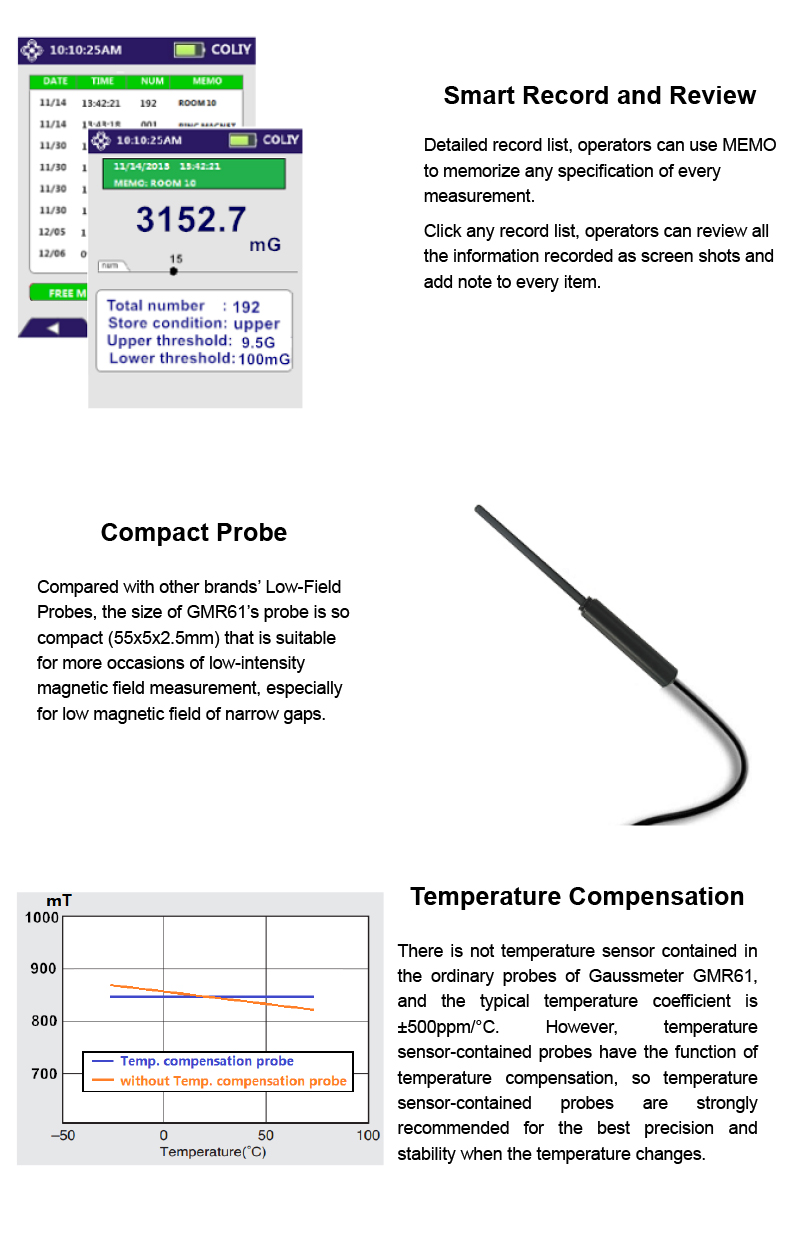

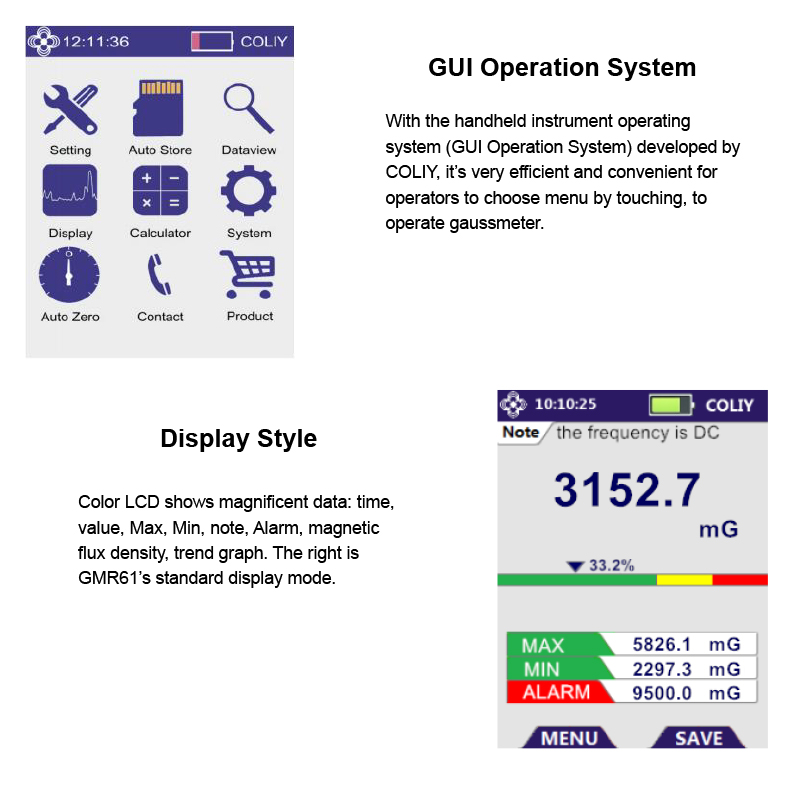

lErgonomically designed l GUI Operation System l 3.2 inches color touch LCD l Max/Min/Hold Function l Smart record and review l Temperature sensor-contained probes l Rechargeable 4400mAH Li-ion Battery | l Probe’s thickness only 2.5mm l Probe’s width only 5mm l Measurement range up to 600μT l Resolution 10nT lDC Accuracy 0.8% lFull 5 display digits l Frequency response: DC to 80Hz |
GMR61 Specification
MODEL | GMR61 |
Measurement Specification | |
Accuracy (DC) | ±0.8% |
Range | 600μT (6G) |
Resolution | 10nT (0.1mG) |
Display Digits | 5 |
Frequency Response [fT] | DC - 80Hz |
Typical Temperature Coefficient | <±500ppm/℃ (Regular Single-Axis probe) <±100ppm/℃ (Probe with temperature sensor) |
Front Panel | |
Screen | 3.2 inches color resistive touch LCD, 320 x 240 Pixel |
Units | Gauss(G), Tesla(T), Amper per meter(A/m) |
Display Update Rate | 3 readings/second |
Display Mode | DC, AC, MAX, MIN, Alarm, etc. |
Probe | |
Probes | See "Probe Specifications" for details. |
Probe Cable Length | Standard 1.5m |
USB Interface | |
Function | 1, Communication Interface: to connect PC with gaussmeter host for monitoring the measurement; 2, Charging interface: to connect PC or mobile power with gaussmeter host for charging |
Software/ Driver | SMART PC Software without any driver |
Host Specifications | |
Operating Temperature | +15°C to +35°C(Rated Accuracy) -10°C to +60°C(Reduced accuracy) |
Storage Temperature | - 20°C to +75°C |
Ambient Magnetic Field | <100G (10mT) DC |
Battery | Rechargeable 4400mAH Li-ion |
Operating battery life | >16 hours(Standard Testing Environment) |
Dimension | 238 mm W × 95 mm H × 42 mm D |
Weight | 350g |
Certification | CE Certification, EMC Certification |
ProbesSpecification
Model GMR61 Gaussmeter Probe | ||||||

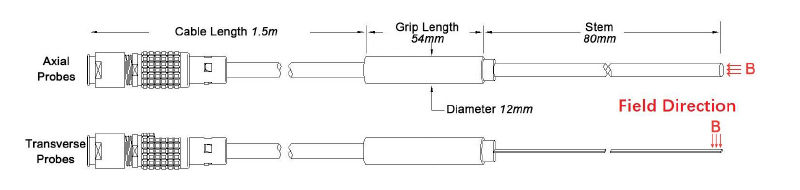

Probe Model | Range | Frequency Response | Stem Dimension (mm) | Operating Temp. (°C) | DC Accuracy (25°C) | Stem Surface Material |
Axial A06L150GMR61 A06L150GMR61T | 6G (600μT) | 0.1mG (10nT) | DC -80Hz | 55*5*2.5 | -20℃ - +60℃ | Plastic |
Transverse T06L150GMR61 T06L150GMR61T | 6G (600μT) | 0.1mG (10nT) | DC -80Hz | 55*5*2.5 | -20℃ - +60℃ | Plastic |
Note:
1,Option “T”: Temperature sensor contained Probe, has the function of temperaturecompensation, and the typical temperature coefficient is <±100ppm/℃;

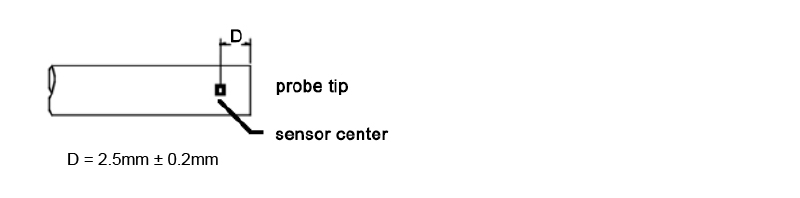

2,The position of sensor center & each axis sensing direction
Optional Accessories
Model | Descriptions |
SAMRT PC Software | PC SOFTWARE for Gaussmeter |
GHOLD100 | 3-Direction Precision Movement Platform, is made of non-magnetic material. Users fixed the probe on the bracket front-end, and then manually rotate the knob so that the probe moves stably along the X, Y, Z-axis to a certain position and lock fixed. Maximum strokes of XYZ axis are 180mm, 180mm and 280mm, and positioning accuracy is 0.1mm, center load: 20kg; weight: 6.2kg |
The most popular package |
Package Product No. GMR6101: Gaussmeter GMR61 + Probe A06L150GMR61 |
Description of Probe Type Selection
A | 06 | L | 150 | GMR61 | T |
PROBE TYPE
A - AXIAL T - TRANSVERSE X - 2 AXIS Y - 3 AXIS
| STEM LENGTH
06 - 6 cm 08 - 8 cm 10 - 10 cm 25 - 25 cm
… | PROBE STYLE
C – CRYOGENIC F – FLEXIBLE H – HIGH TEMP. L – LOW FIELD M – METAL P – PLASTIC U – ULTRATHIN W – WIDE FIELD | CABLE LENGTH
150 – 150cm … | GAUSSMETER MODEL
GMR61 – GMR61 probe
| TEMPERATURE COMPENSATED
T - YES BLANK - NO |
Please contact sales@coliy.com for the latest detailed datasheet.
