l Finest Resolution 0.1nT
l DC/AC Measurement Mode Switch
COLIY®--Excellent Solution for Magnetic Field Measurement | ||||||
High Magnetic Field (0-10T) Measurement | ||||||
Model | Principle | Type | Axis | DC Accuracy | Range | Resolution |
HALL | Sensor | 1 | 0.05% | 15T | TC of sensitivity: 30ppm/K | |
HALL | Handheld | 1 | 2% | 2T | 10μT | |
HALL | Handheld | 1 | 0.8% | 10T | 1μT | |
HALL | Handheld | 1 | 0.8% | 150mT | 0.1μT | |
HALL | Handheld | 3 | 0.8% | 10T | 1μT | |
HALL | Desktop | 1 | 0.05% | 10T | 1μT | |
HALL | Desktop | 3 | 0.1% | 10T | 1μT | |
GSP301D | HALL | Transmitter | 1 | 0.5% | 10T | 1μT |
GSP303D | HALL | Transmitter | 3 | 1% or 0.2% | 10T | 1μT |
Low Magnetic Field(0- 2mT) Measurement | ||||||
Gaussmeters for Low Magnetic Field | ||||||
Model | Principle | Type | Axis | DC Accuracy | Range | Resolution |
Fluxgate | Sensor | 3 | 0.5% | 1500μT | Output ±10V | |
Fluxgate | Transmitter | 3 | 0.2% | 1mT | 0.1nT | |
GMR | Handheld | 1 | 0.8% | 600μT | 10nT | |
GMR | Handheld | 3 | 0.8% | 600μT | 10nT | |
Fluxgate | Handheld | 1 | 0.5% | 200μT | 1nT | |
Fluxgate | Handheld | 3 | 0.5% | 200μT | 1nT | |
Fluxgate | Handheld | 1 | 0.5% | 1mT | 0.1nT | |
Fluxgate | Handheld | 3 | 0.25% | 1mT | 0.1nT | |
Fluxgate | Desktop | 3 | 0.1% | 1mT | 0.01nT | |
Note: 1T= 10kG; 1mT= 10G; 1μT= 10mG; 1nT= 10μG | ||||||
Description:

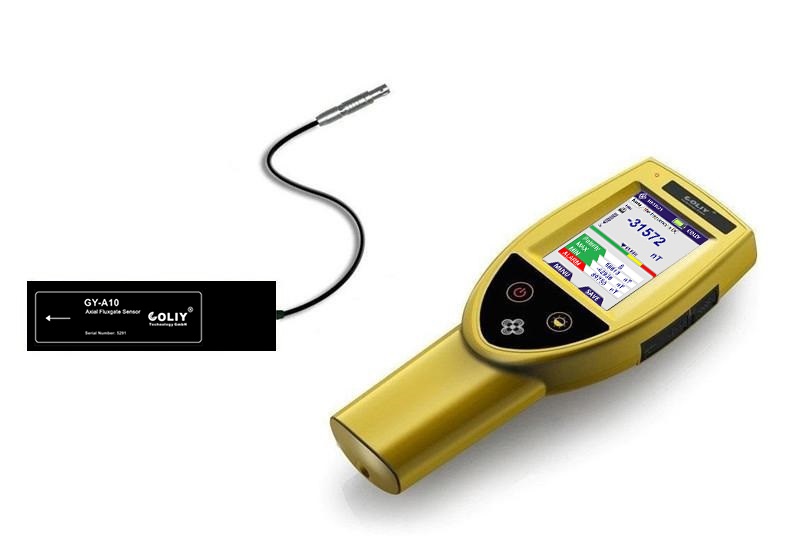

Single-axis Fluxgate Magnetometer GF601, made by COLIY, has the excellent ergonomic design with the latest electronic technology, and it’s one of best choices to measure low-intensity magnetic field. This handheld fluxgate magnetometer can be used in geomagnetism detection, wrapped detection,traffic monitoring, measuring residual magnetism, low-intensity magnetic fieldmeasurement, etc.
GF601 boasts with anindustrial class 3.2 inches touch panel display that enables customers’instantaneous and simultaneous measurement results [Max/ Min/ Peak/ Hold/ Alarm/ Polarity, Magnetic Flux Density,Trend Graph, etc.].
MagnetometerGF601 can be used to detect DC magnetic field in DC measurement mode and AC magneticfield in AC measurement mode respectively: GF601 allows DC measurements with abasic accuracy of 0.5%, resolution of 0.1nT and AC measurement with a basicaccuracy of 1% and frequency response range of DC~ 1kHz. Magnetometer GF601could be equipped with Transverse Probe or Axial Probe of different range:±100μT and ±1000μT.
MagnetometerGF601 has passed the CE certification and EMC (Electromagnetic Compatibility)test.
Features | |
l Ergonomically designed l GUI Operation System l 3.2 inches color touch LCD l Full 5 display digits l Max/Min/Hold Function l Display trend graph & Alarm l S or N Polar indication | l Range: ±100μT or ±1000μT l DC Basic Accuracy: 0.5% l AC Basic Accuracy: 1% l Resolution: up to 0.1nT l DC/AC measurement mode switch l Frequency response: DC- 1kHz l Smart record and review |
| GUI Operation System

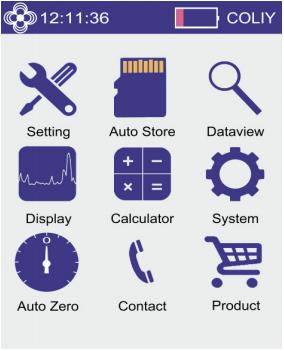

With the handheld instrument operating system (GUI Operation System) developed by COLIY, it's very efficient and convenient for operators to choose menu by touching, to operate magnetometer. |
Display Style

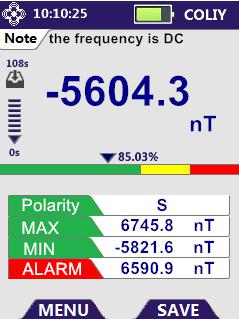

Color LCD shows magnificent data: time, value, polarity, Max, Min, note, Alarm, Magnetic Flux Density, trend graph, etc. |
|
| Smart Record and Review

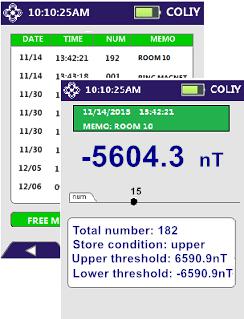

Detailed record list, operators can use MEMO to memorize any specification of every measurement. Click any record list, operators can review all the information recorded as screen shots and add note to every item. |
AC Measurement Mode

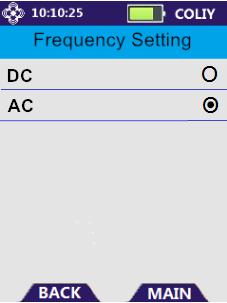

GF601 can be used to detect DC magnetic field in DC measurement mode and AC magnetic field in AC measurement mode respectively, and the frequency response range is DC~ 1kHz. |
|
|

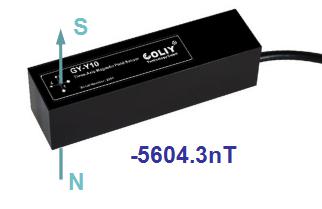

GF601 could show the clear polar indication by a colorful and dynamic cartoon picture. Picture in the left is adopted from Polar Mode displayed in the LCD screen during operation. |
3D Movement Platform

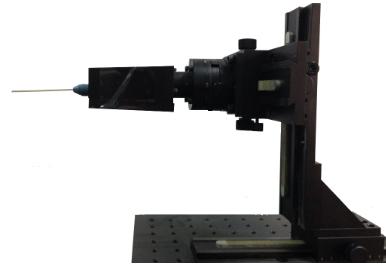

3-Direction Precision Movement Platform, is made of non-magnetic material. Users fixed the probe on the bracket front-end, and then manually rotate the knob so that the probe moves stably along the X, Y, Z-axis to a certain position and lock fixed. Maximum stroke of each axis is 150mm, and positioning accuracy is 0.1mm.
|  |
SMART PC Software

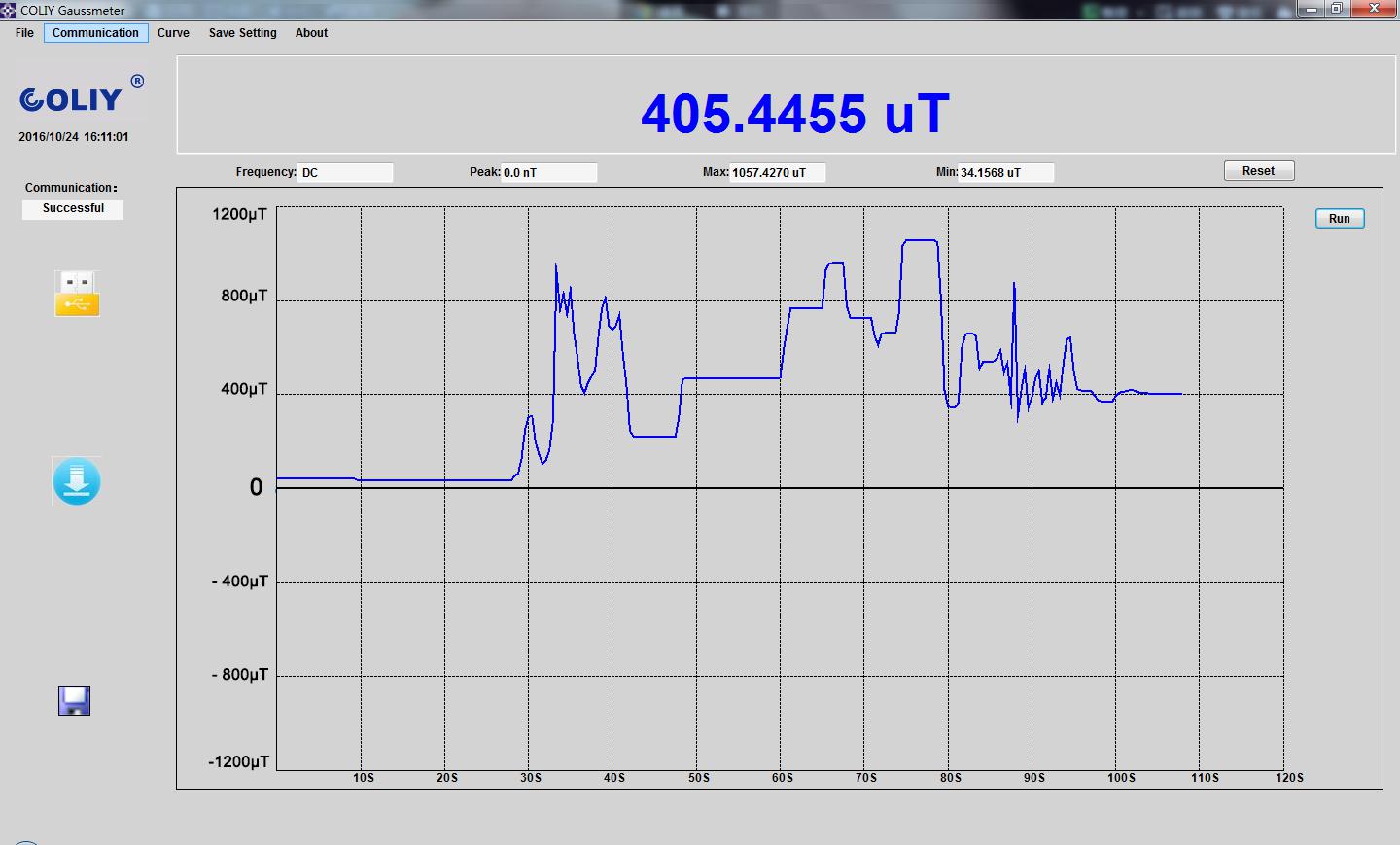

SMART computer software has rich features: Automatically record and display trend graph; Display XYZ components and vector of magnetic flux density, maximum and minimum in real time; Export saved data from the gaussmeter host; Record and save measurement data in real time.
GF601 Magnetometer Specification:
Model | GF601 | ||
Measurement Specification | |||
Accuracy | DC | ±0.5% Reading± 0.1% FS | |
AC | ±1% Reading ± 0.1% FS [fT ≤ 300Hz] ±2% Reading ± 0.1% FS [300Hz < fT ≤ 500Hz] ±10% Reading ± 0.1% FS [500Hz < fT ≤ 1000Hz] | ||
Range | DC | ±100μT | ±1000μT |
AC* | ±70μT | ±700μT | |
Finest Display Resolution | 0.1nT | ||
Measurement Resolution | <1nT | <10nT | |
Display Digits | 5 digits | ||
Frequency Response [fT] | DC - 1kHz | ||
Typical Temperature Coefficient | ±100ppm/℃ | ±200ppm/℃ | |
Hysteresis | <2nT for exposure to up to 2 x full scale | ||
Front Panel | |||
Screen | 3.2 inches color resistive touch LCD,320x240 Pixel | ||
Units | Gauss(G), Tesla(T), Amperes per meter (A/m) | ||
Display Update Rate | 3 readings/second | ||
Display Mode | DC, AC, Vector, XYZ Components, MAX, MIN, Trend Graph, Alarm, Polarity Indication, etc. | ||
Probe | |||
Start-up Time | 150 ms | ||
Warm-up Time | 15 min | ||
Probes | See "Probe Specifications" for details. | ||
Probe Cable Length | Standard 1.5m; Customizable longest length of 30 m | ||
USB Interface | |||
Function | 1, Communication Interface: to connect PC with gaussmeter host for monitoring the measurement; 2, Charging interface: to connect PC or mobile power with gaussmeter host for charging | ||
Software/ Driver | SMART PC Software without any driver | ||
Host Specifications | |||
Operating Temperature | +15°C to +35°C (Rated Accuracy) -10°C to +60°C (Reduced accuracy) | ||
Storage Temperature | - 20°C to +75°C | ||
Ambient Magnetic Field | <100G (10mT) | ||
Battery | Rechargeable 4500mAH Li-ion | ||
Operating Battery Life | 5 hours; Can be charged by AC power or portable battery | ||
Dimension | 238 mm W × 95 mm H × 42 mm D | ||
Weight | 350g | ||
Certification | CE Certification, EMC Certification | ||
AC Range mentioned above refers to AC magnetic field measurement range after DC magnetic field is shielded, so if DC magnetic field is not shielded, and users want to measure magnetic field in AC measurement mode, AC Range is equivalent to the value that 0.7 times of DC Range minus DC magnetic field intensity. [SQRT(2)/2 ≈ 0.7]
Probes Specification
Model GF601 Magnetometer Probes | ||||||
Probe Model | Range | Frequency Response | Temperature Coefficient | Offset Error in Zero Field | DC Accuracy ( 25°C) | Stem material |
Transverse GF-T01 | ±100μT | DC-1kHz | ±100ppm/℃ | ±25nT | ±0.5% Reading ± 0.1% FS | POM |
GF-T10 | ±1,000μT | DC-1kHz | ±200ppm/℃ | ±100nT | ±0.5% Reading ± 0.1% FS | POM |
Axial GF-A01 | ±100μT | DC-1kHz | ±100ppm/℃ | ±25nT | ±0.5% Reading ± 0.1% FS | POM |
GF-A10 | ±1,000μT | DC-1kHz | ±200ppm/℃ | ±100nT | ±0.5% Reading ± 0.1% FS | POM |
1, Single-axis fluxgate probe can be customized within ±10G; Unit Conversion: 1G=100,000nT;Note:
2, Fluxgate probe’s dimension: 107 x 32 x 32mm, and its operating temperature: -20℃ to +60℃;
3, Fluxgate probe’s environmental protection / sealing is IP66 by default;
4, Please contact Coliy for probes with higher environmental protection, the fluxgate probe in the long-term work of 50 meters underwater.
Optional Accessories
Model | Descriptions |
GHOLD100 | 3-Direction Precision Movement Platform, is made of non-magnetic material. Users fixed the probe on the bracket front-end, and then manually rotate the knob so that the probe moves stably along the X, Y, Z-axis to a certain position and lock fixed. Maximum stroke of each axis is 150mm, positioning accuracy of 0.1mm; center load: 10kg; weight: 3.5kg |
Probe Extension Cable | MAX length is 30m |
SAMRT PC Software | PC SOFTWARE for Magnetometer |
The most popular configuration |
Package Product No. GF601T01: Magnetometer GF601 + Probe GF-T01 |
Package Product No. GF601T10: Magnetometer GF601 + Probe GF-T10 |
Package Product No. GF601A01: Magnetometer GF601 + Probe GF-A01 |
Package Product No. GF601A10: Magnetometer GF601 + Probe GF-A10 |
Description of Probe Type Selection
GF | T | 01 |
PROBE PRINCIPLE
GF- Fluxgate Probe
| PROBE TYPE
Y- 3-axis Probe T- Transverse Probe A- Axial Probe … | MEASUREMENT RANGE
01- Range of ±100μT 10- Range of ±1000μT |
Please contact sales@coliy.com for the latest detailed datasheet.
