GSP303D 3-AxisDigital Magnetic Field Transmitter

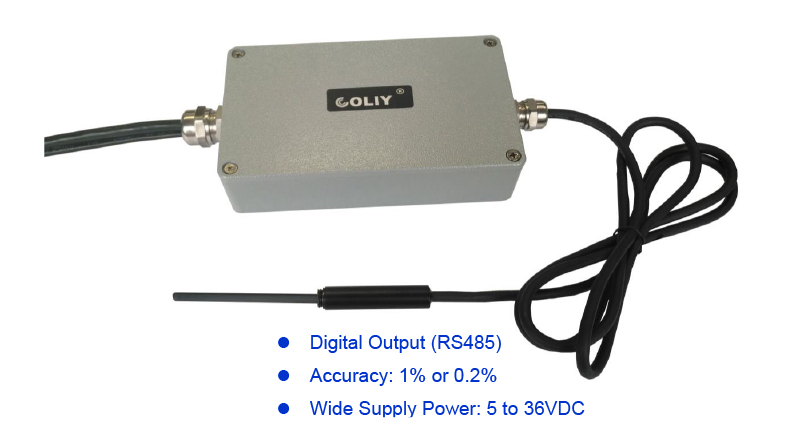

Description:

With industry standard design, 3-Axis Digital Magnetic Field Transmitter GSP303D, could measure magnetic fields and output digital signals (Bx, By, Bz) of a magnetic flux density via RS485, which is easy to make into an integrated system, and able to meet the industrial production of a variety of complex environments and requirements. Typical applications are: Magnetic Field Map (magnetic field mapping & scanning system), incoming test in production line, quality control and monitoring system (generator, motor), distribution test of pulsed magnetic field and gradient magnetic field, multi-point synchronous testing of space magnetic field, material surface magnetic field detection and so on.

Transmitter GSP303D’s 3-axis probe sensor provides very high spatial resolution (magnetic field sensitive volume 0.1 x 0.1 x 0.1mm³), orthogonality error is less than 0.1^o, and the thickness of 3-axis probe is 2mm, so it’s suitable for institutes, universities and enterprises.

Transmitter GSP303D's measurement range can be chosen, such as 300G, 3kG, 20kG, 30kG, 100kG, or to be customized, with a basic accuracy of 1% or 0.2%. Transmitter GSP303D’s data output rate is max 750 Samples/Second/Axis.

Transmitter GSP303D’s power supply is very unique, as 5VDC- 36VDC wide power supply. Lack of power supply or power supply equipment failure situation will lead to voltage instability, and will be likely to cause instability in the test data or hardware damage. Wide voltage power supply effectively ensures that GSP303D will work stably and has better reliability when power supply voltage is unstable.

Transmitter GSP303D can be equipped with Standard 3-Axis Probe and Temperaturesensor-contained 3-Axis Probe. Transmitter GSP303D’s typical probes adopt the instrument-grade GaAs Hall Sensor which owns a temperature coefficient of 500ppm/℃. However, Temperature sensor-contained probes (probes with built-in temperature sensor) have the function of temperature compensation, so temperaturesensor-contained probes are strongly recommended for better precision and stability when the temperature changes. Also according to the special needs, it’s possible to customize probe’s range, shape, size and cable length.

Manysets (up to 64 sets) of Transmitters GSP303D could be constituted to adistribution measurement system, which is very suitable for various magnetic field measurements, like all types of spatial variation of the magnetic field to synchronize detection, the magnetic multi-point and multi-face concurrent measurement, and distribution measurement of the impulse magnetic field and gradient magnetic field.

Meanwhile, Transmitter GSP303D has passed the CE certification and EMC (Electromagnetic Compatibility) test.

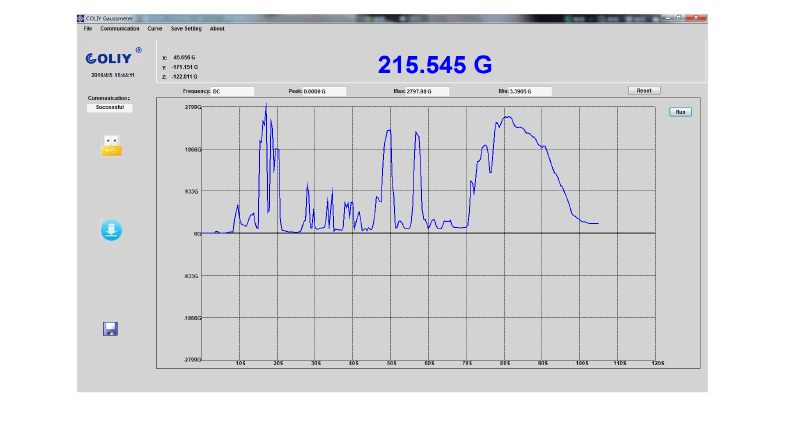

Smart PC Software Interface

GSP303D Transmitter Specification:

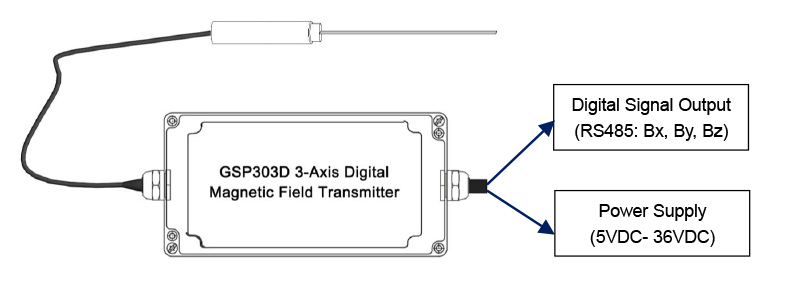

GSP303D Transmitter’s Connection and Terminals Description

 1, Transmitter Terminals Description

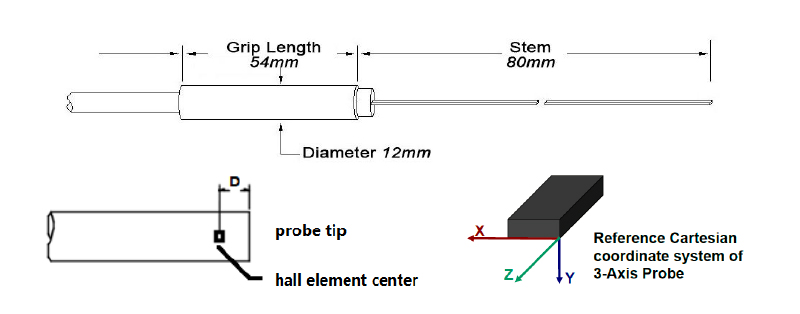

2, Probe’s Dimension

Description of Transmitter Type Selection

  Note:

1, GSP303D-20kG-1%-1.5m is the standard model of 3-Axis magnetic field transmitter GSP303D; users should select measurement range and probe cable length before an order; if customers have other special requirements (such as pulse magnetic field, high-speed magnetic field measurement sampling, high temperature or low temperature measurement environment, underwater magnetic field monitoring measurements, etc.), please contact Coliy.

2, Temperature sensor contained Probe, has the function of temperature compensation;

3, Each 3-axis probe’s fully calibrated measurement range: ≤±20kG (±2T);

4, Probe’s default operating temperature: -20℃ to +75℃.

Optional Accessories

Please contact sales@coliy.com for the latest detailed datasheet.
