● Very high magnetic DC resolution: better
than 0.1ppm (@10T range: 1µT）
● Bypass Zero Technology
● Accuracy 0.04％
● Range 10T
|
COLIY®--Excellent Solution for Magnetic Field Measurement |
||||||
|
High Magnetic Field (0-20T) Measurement |
||||||
|
Model |
Principle |
Type |
Axis |
DC Accuracy |
Range |
Resolution |
|
HALL |
Handheld |
1 |
2% |
2T |
10μT |
|
|
HALL |
Handheld |
1 |
0.8% |
10T |
1μT |
|
|
HALL |
Handheld |
3 |
1%, 0.5% |
20T |
10μT |
|
|
HALL |
Desktop |
1 |
0.04% |
10T |
1μT |
|
|
HALL |
Sensor |
1 |
0.05% |
15T |
TC of sensitivity: 30ppm/K |
|
|
Low Magnetic Field(0- 2mT) Measurement |
||||||
|
Gaussmeters for Low Magnetic Field |
||||||
|
Model |
Principle |
Type |
Axis |
DC Accuracy |
Range |
Resolution |
|
Fluxgate |
Handheld |
1 |
0.5% |
1mT |
0.1nT |
|
|
Fluxgate |
Handheld |
3 |
0.25% |
1mT |
0.1nT |
|
|
Note: 1T= 10kG; 1mT= 10G; 1μT= 10mG; 1nT= 10μG |
||||||
Description

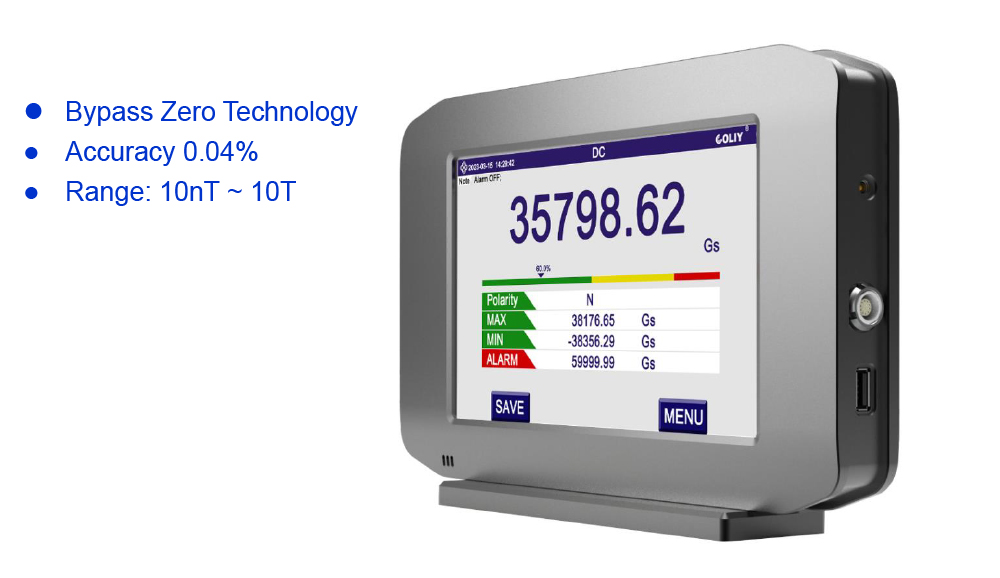

Coliy Model G401 is a high-precision desktop single-axis Gaussmeter, which uses third-generation semiconductor galliumnitride (GaN) Hall sensor. Galliumnitride sensor has the characteristics of good temperature stability, not affected by light, high linearity and low noise, and its performance is ahead of the second generation semiconductor gallium arsenide (GaAs) sensor technology.
Ordinary Gaussmeter boot and measurement often need to zero, cumbersome operation, affect the accuracy. G401 Gaussmeter adopts Bypass Zero Technology and high stability GaN Hall sensor, which isready to start without Zero correction, greatly improving the accuracy and convenience of use.
The DC accuracy of G401 Gaussmeter is better than 0.04%,measuring range up to 100kG(10T), frequency response range DC-10kHz. G401 Gaussmeter has up to 7 display digits, very low measurement noise in the full range, typical DC magnetic field noise of 0.01G(1μT).
Gaussmeter G401 adopts 9 inches color industrial resistance touch screen, built-in graphical interface operating system, easy to operate by users; small size, save desktop space, low power consumption, low-power design,environmental protection.
Gaussmeter G401 provides advanced functionality, with maximum/minimum value, magnetic field polarity display, storage, time domain diagram, oscilloscope, real-time spectrum analysis and 0.2ms pulse magneticfield capture functions; G401 Gaussmeter has a variety of measurement modes: DCstandard mode, DC time domain diagram mode, AC standard mode, AC spectrum analysis mode, AC oscilloscope mode and 0.2ms pulse magnetic field mode, which can meet various complex magnetic field measurement occasions. G401 Gaussmeter adopts Fourier analysis method to measure the RMS value of AC magnetic field.The frequency response range is 0.5HZ-10kHz, which is suitable for measuring the magnetic field of sine wave, square wave, triangle wave, trapezoidal wave,sawtooth wave and other waveforms.
Gaussmeter G401 could be equipped with different kinds of Hall Probes: Standard Transverse Probe, Standard Axial Probe, and Temperature sensor-contained Probe. The temperature coefficient of ordinary probes is 100ppm/℃, but temperature sensor-contained probes(probes with built-in temperature sensor), whose temperature coefficient is down to 20ppm/℃, have the function of temperature compensation, so temperature sensor-contained probes are strongly recommended for better precision and stability when the temperature changes.
Gaussmeter G401 has passed the CE certification and EMC (Electromagnetic Compatibility) test.
|
Features |
|
|
● Bypass Zero Technology ● GUI Operation System ● Third-generation semiconductor gallium nitride (GaN) Hall sensor ● 9 inches color touchLCD ● RMS AC magnetic field measurement of various waveforms ● Measure RMS AC magnetic field as low as 0.5Hz ● Full 7 display digits ● Design by aviation aluminum shell, save desktop space ● Oscilloscope function ● Max/Min Function
|
● Measurement range up to 100kG(10T)
● Very high magnetic DC resolution: better ● Typical DC magnetic field noise 0.01G (1 μ T) ● DC Basic Accuracy : 0.04% ● Frequency response DC- 10kHz ● Optional probes with temperature compensation (down to 20ppm/℃) ● Real-time spectrum analysis function ● 0.2ms pulse magnetic field capture functions ● Low power fanless design, green and environment-friendly |
|

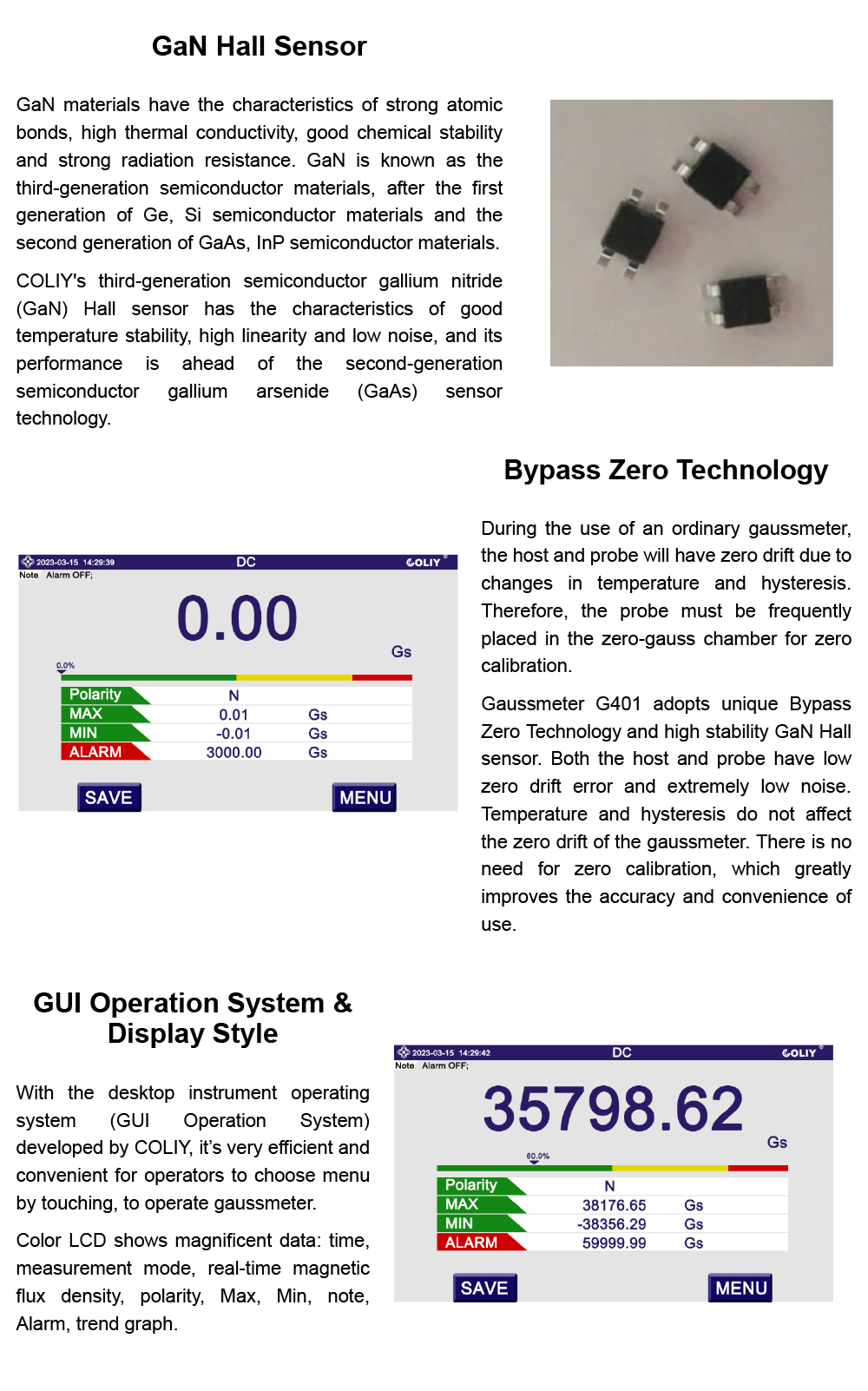

GaN Hall sensor
GaN materials have the characteristics of strong atomic bonds, high thermal conductivity, good chemical stability and strong radiation resistance, and are known as the third generation semiconductor materials after the first generation of Ge, Si semiconductor materials, the second generation of GaAs, InP semiconductor materials.
The third-generation semiconductor GaN Hall sensor of COLIY Company is characterized by good temperature stability, high linearity and low noise, and its performance is ahead of the second generation semiconductor GaAs sensor. |
|
|
|
Bypass Zero Technology During the use of ordinary Gaussmeters, the magnetic field zero point of the host and probe will shift due to temperature changes and hysteresis, so the probe must always be put into the zero calibration chamber for zero calibration.
G401 Gaussmeter adopts unique BypassZero Technology proprietary technology and high stability GaN Hall sensor. Both the host and probe have excellent zero stability and low noise. Temperature and hysteresis do not affect the zero point of the Gaussmeter. Zero calibration isnot required during use, which greatly improves the accuracy of data and convenience of use. |
|
Intelligent graphical interface operatingsystem & rich display style The graphical interface operating systemdeveloped by COLIY allows users to select menus by touching, which is easy tooperate and clear at a glance.
The color LCD display screen displays avariety of data: time, measurement mode, real-time magnetic field strength,polarity, maximum value, minimum value, relative value, storage time interval,annotation, alarm threshold, time domain diagram, etc. |
|
|
|

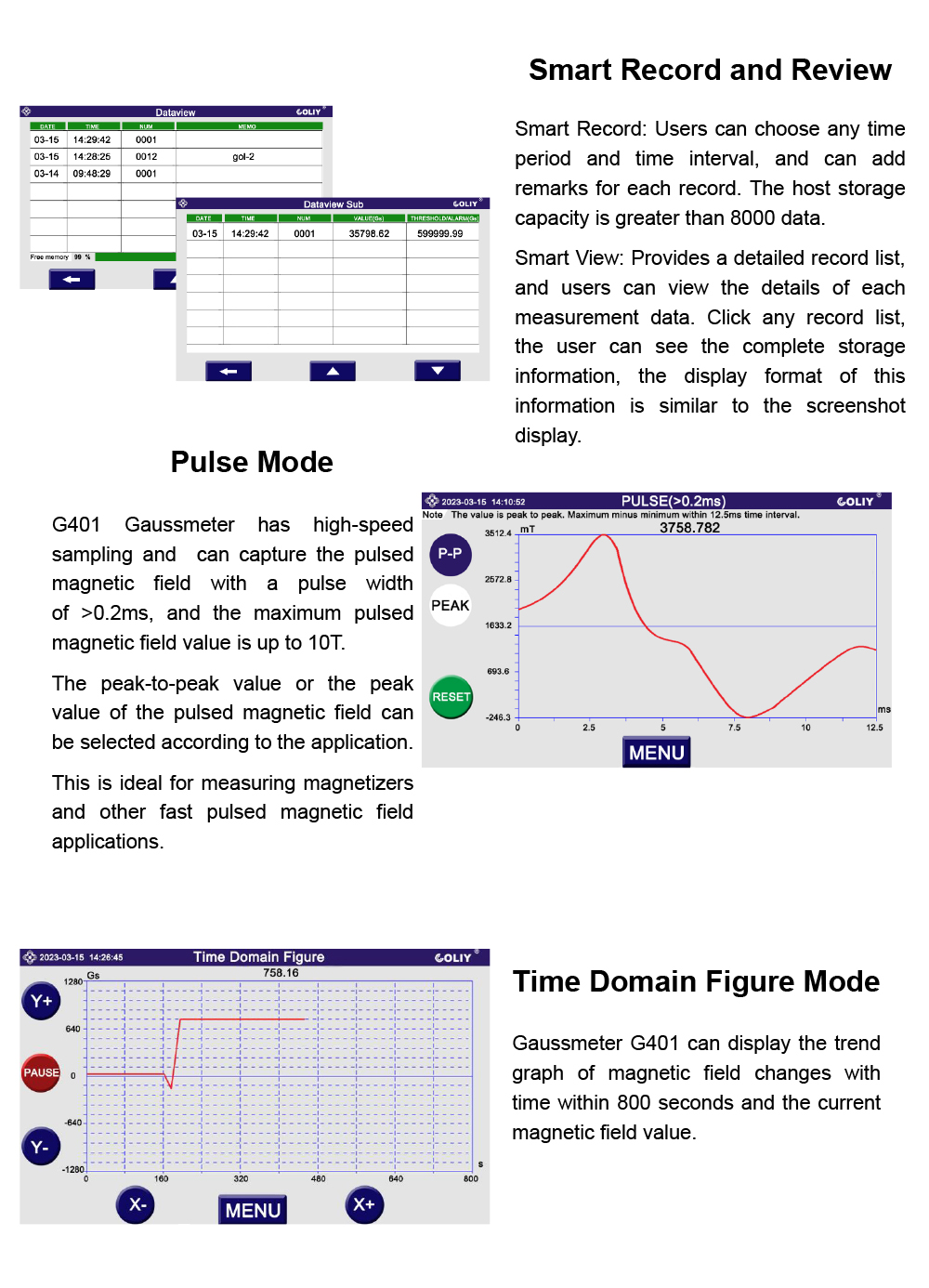

Intelligent recording and viewing Intelligentdata record: the user can select any time length and any time interval, and canadd notes to each record. The host storage capacity is greater than 8000 data.
Intelligentview: provides a detailed record list, allowing users to view the details ofeach measurement data. Click any record list, and the user can see the completestorage information. The display format of this information is similar to thescreenshot display. |
|
0.2ms pulse magnetic field capture function
G401 Gaussmetercan sample at high speed and capture positive and negative pulse magneticfields with time width ≥ 0.2ms, and the maximum pulse magnetic field value isup to 10T. The peak topeak value or peak value of the pulsed magnetic field can be selected accordingto the use scenario. This isideal for measuring magnetizers and other fast pulsed magnetic fieldapplications. |
|
|
|
Time domain diagram function G401 Gaussmeter can display the trend chart of magnetic field changes with time within 75 seconds and the current magnetic field value.
|
|

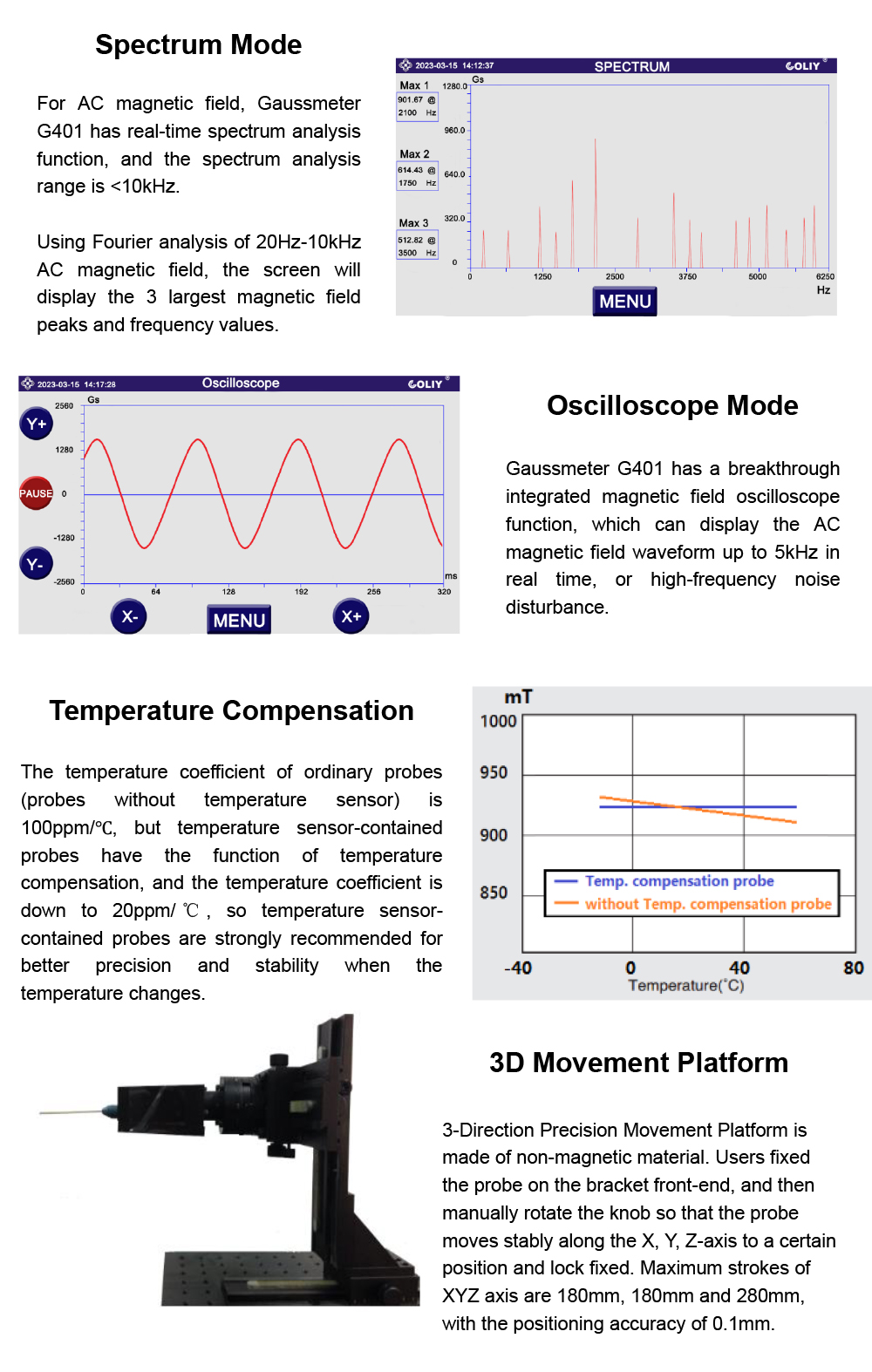

Real time spectrum analysis For AC magnetic field, G401 Gaussmeter has real-time spectrum analysis function,and the spectrum analysis range is less than 10kHz. Fourier is used to analyzethe AC magnetic field of 20Hz-10kHz, and the screen displays two maximum magneticfield peaks and frequency values.
|
|
|
|
Oscilloscope function TheG401 Gaussmeter is a breakthrough in integrating the magnetic fieldoscilloscope function, which can display the magnetic field waveform up to 5kHzin real time, or high-frequency noise disturbance.
|
|
Temperature compensation The conventional probe does not contain a temperature sensor, and its temperature coefficient is 100ppm/℃, while the probe with built-in temperaturesensor has a temperature compensation function, and its temperature coefficientis as low as 20ppm/℃, which can improve the accuracy and stability of measurement data when the temperature changes. Therefore, it is strongly recommended to purchase a probe with built-in temperature sensor. |
|
|
|
3D movable platform The three-dimensional mobile platform is made of non-magnetic materials. The userfixes the probe at the front end of the bracket, manually rotates the knob tomake the probe move steadily to a certain position along the X, Y, Z axisdirection, and locks and fixes it. The maximum stroke of each shaft is 150 mm,and the positioning accuracy is 0.1 mm.
|
|
Metal protective sleeve Allthe probes of COLIY Gaussmeter are protected by non-magnetic metal casing.
Thenon-magnetic metal sleeve can be tightened and fixed with the probe handle toprotect the probe from strong impact, extrusion, etc. It can prevent the probe from falling down at a height of 10 meters, and even resist the impact of ahammer. It is suggested that the user should tighten and fix the non-magnetic metal sleeve after completing the magnetic field measurement to protect the probe from damage to the maximum extent.
|
|
|
|
Splitde sign The host and base of G401 Gaussmeter are designed separately. With the base, theG401 Gaussmeter host can be placed upright on the desktop; Remove the base, and the G401 Gaussmeter host is used as a handheld tablet, which is flexible andconvenient. The mobile phone charging bank can be used as the mobile power supplyof the Gaussmeter.
|
|

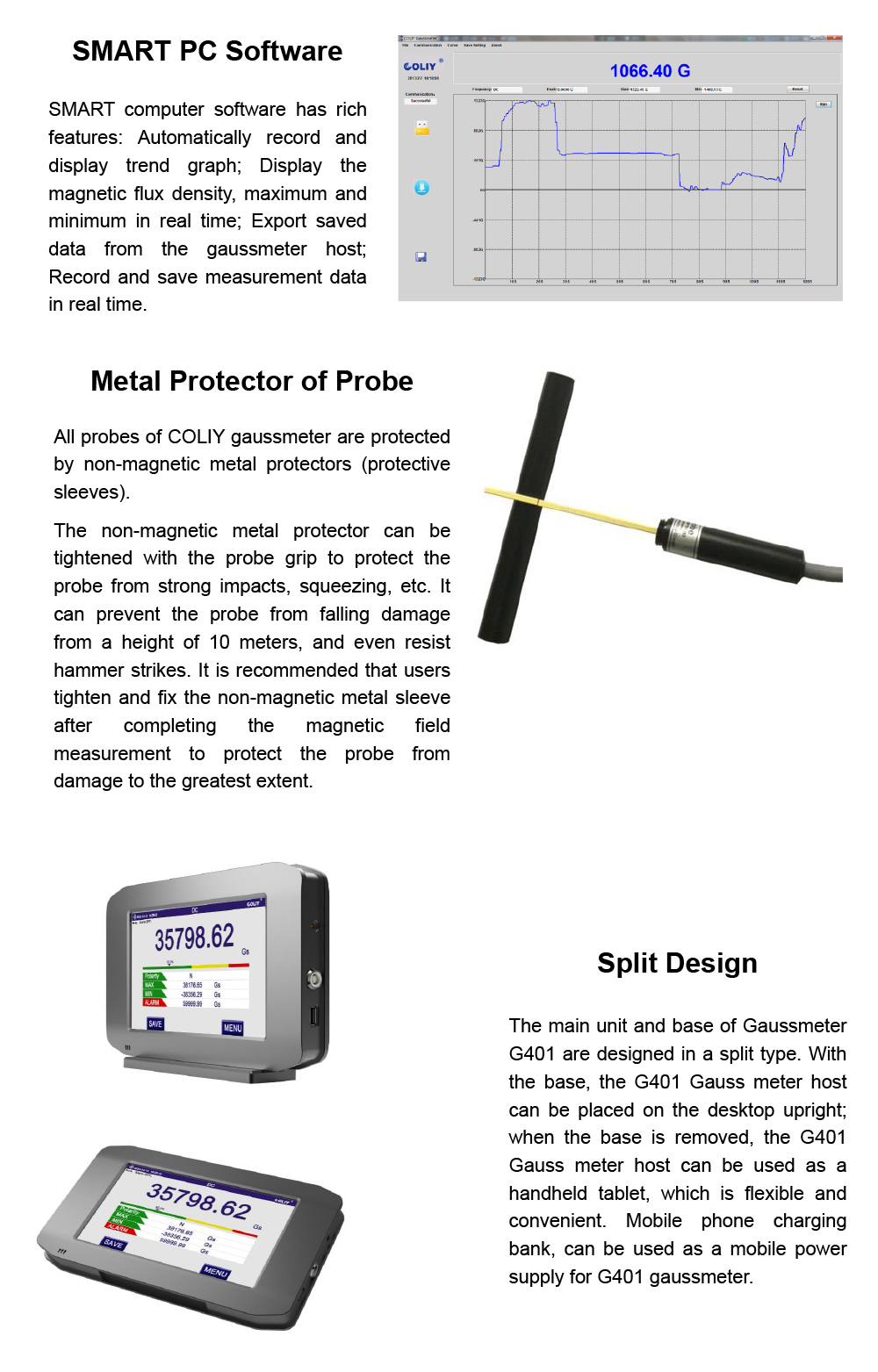

SMART software SMART computer software has rich functions: it can automatically record and display trend curves; Real time display of magnetic field strength, maximum value andminimum value; The data saved by the Gauss meter host can be exported; Themagnetic field strength data can be recorded and saved in real time. |
|
G401 Gaussmeter Specification
|
Model |
G401 |
|
Measurement Specification
|
|
|
Accuracy (DC , 25℃) |
≤ ±0.04% of Reading ± 0.2G |
|
Range |
100kG (10T) |
|
Frequency Response |
DC - 10kHz |
|
Typical DC Field Noise |
0.01G (1μT) |
|
Measurement Mode |
1, DC standard: display real-time value, magnetic field polarity N/S, maximum value, minimum value, alarm threshold. 2, DC time domain diagram: it shows the trend diagram of magnetic field changing with time within 75 seconds. 3, AC standard: AC frequency response range 0.5Hz-10kHz, RMS root mean square value, suitable for various waveforms, such as sine wave, square wave, triangular wave, trapezoidal wave, sawtooth wave, etc. 4, AC spectrum analysis: Fourier analysis 20Hz-10kHz, the screen displays two maximum magnetic field peaks and frequency values. 5, AC oscilloscope: real-time display of magnetic field waveform up to 5kHz or high-frequency noise disturbance； 6, Pulse magnetic field measurement: capture positive and negative pulse magnetic fields with time width ≥ 0.2ms, and the maximum pulse magnetic field value is up to 10T. |
|
DisplayDigits |
All 7 digits, maximum 99999.99G |
|
ZeroDrift |
Adopt the proprietary technology of Bypass Zero Technology, without zero drift, and temperature and hysteresis have no effect on zero |
|
Typical Temperature Coefficient |
< ±100ppm/℃ (Conventional probe) < ±20ppm/℃ (Probes with temperature compensation) |
|
Front Panel
|
|
|
Screen |
9 inchescolorresistivetouchLCD,800 x 600 Pixel |
|
Units |
Gauss(G), Tesla(T) |
|
Display Update Rate |
4 readings/second |
|
Display Mode |
DC, AC, MAX, MIN, Alarm, PolarityIndication, Spectrum analysis, 0.2ms pulse magnetic field capture, oscilloscope, TrendGraphetc. |
|
Probe
|
|
|
Sensor |
COLIY Third Generation Semiconductor GaN Hall Sensor |
|
Probes |
See "ProbeSpecifications"fordetails. |
|
Connector |
IP67waterproof connector |
|
Probe Handle and Protective Sleeve |
Non magnetic aviation aluminum alloy, resistant to 10m drop |
|
Cable Line |
Shielded twisted pair flexible cable, complying with CAT5e standard |
|
Probe Cable Length |
Standard 1.5m; Customizablelongestlengthof 30 m |
|
USB Interface |
|
|
Function |
To connect PC with gaussmeterhostformonitoringthe measurement, display data and canbepoweredbyamobilepowersupply (5V)
|
|
Software/ Driver |
SMART PC Software / LabVIEW™
|
|
AnalogOutput
|
|
|
Linearity (DC) |
±0.1% |
|
Function |
Real time output, the output voltage is proportional to the magnetic field strength |
|
Full Scale Voltage |
±5 V |
|
Output Scale |
6 options(x1, x2, x4, x8, x16, x32) |
|
Frequency Response |
See probe frequency response parameters |
|
Connection |
BNC adapting cable for analog out put |
|
Host Specification
|
|
|
StorageTemperature |
- 25℃ ~ +60℃ |
|
Operating Temperature |
-20℃ ~ +50℃ |
|
Preheat |
It is ready for use after startup, Optimal performance after 5 minutes |
|
Temperature Coefficient |
<±10ppm/℃，Neglect the influence on accuracy within the operating temperature range |
|
AmbientMagnetic Field |
<1kG(0.1T) |
|
PowerSupply |
5VDC，Mobile power supply can be connected |
|
Power Interface |
Type-C USB |
|
Dimension |
281 mm W × 164 mm H × 26 mm D |
|
Weight |
1.52kg |
|
Texture of Material |
High strength aviation aluminum alloy |
|
Certification |
CE Certification, EMC Certification |
Probe Specification
|

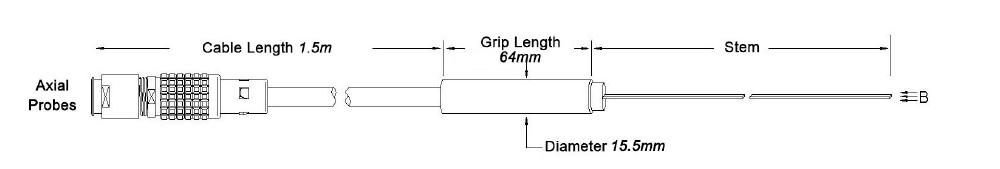

Model G401 Gaussmeter Probes |
|||||||
|
Probe Model |
Range |
Best Resolution |
Frequency Response |
Stem dimension (mm) |
Operating temp. (℃) |
DC Accuracy(25℃) |
Stem surface material |
|
Transverse T08M150G401 T08M150G401T |
100kG (10T) |
0.01G (1μT) |
DC-10kHz |
80*2.2*1 |
-20 - +60 |
±0.04% |
Copper |
|
Axial A08M150G401 A08M150G401T |
100kG (10T) |
0.01G (1μT) |
DC-1kHz |
80*Φ6 |
-20 - +60 |
±0.1% |
Copper |
Note：
1, Option “T” : TemperaturesensorcontainedProbe, hasthefunctionoftemperaturecompensation, and the temperaturecoefficientis <±20ppm/℃;
2, Each probe’s fully calibratedmeasurementrange:≤±20kG(±2T);
3, The probe rod size, surface material and cable lengthcan be customized.
Optional Accessories
|
Model |
Descriptions |
|
ZC10 |
Zero chamber, provides up to 80dB in fields up to 500 G and can be used with standard probes. Internal dimension of the Chamber: diameter 6.8mm x 44.5mm |
|
PS-1W |
Mobilepowersupply, and G401 can be powered via a USB interface to meet the needs of outdoor measurement of magnetic fields. Capacity: 10000mAh; Input: 100- 240VAC; Output: 5V/2A |
|
SAMRT PC Software |
PC SOFTWARE for Gaussmeter |
|
GHOLD100 |
3-Direction Precision Movement Platform, is made of non-magnetic material. Users fixed the probe on the bracket front-end, and then manually rotate the knob so that the probe moves stably along the X, Y, Z-axis to a certain position and lock fixed. Maximum stroke of each axisis 150mm, positioning accuracyof 0.1mm; centerload: 10kg; weight: 3.5kg |
|
Probe Extension Cable |
Cables are available in lengths to 30m. |
|
The most popular Package |
|
Package Product No. G40101: Gaussmeter G401 + Probe T08M150G401 + Zero ChamberZC10 |
Description of Probe Type Selection
|
T |
08 |
M |
150 |
G401 |
T |
|
PROBETYPE
A - Axial T - Transverse X - 2 AXIS Y - 3 AXIS
|
STEM LENGTH
06 - 6 cm 08 - 8 cm 10 - 10 cm 25 - 25 cm
… |
PROBESTYLE
C – CRYOGENIC F – FLEXIBLE L – LOW FIELD M – METAL P – PLASTIC U – ULTRATHIN W –WIDE FIELD |
CABLE LENGTH
150 –3750px … |
GAUSSMETER MODEL
G401 – G401 probe
|
TEMPERATURE COMPENSATED
T - YES BLANK - NO |
