G80 Handheld Gaussmeter/Teslameter

●  Range: 2T (20kG)
●  DC Basic Accuracy: <±2%
●  Resolution: 0.01mT (0.1G)
●  Frequency Response DC- 100Hz
●  Bypass Zero Technology
●  Gallium Nitride (GaN) Hall Sensor.
●  Max/Min/Hold Function
●  S or N Polar indication

Download


COLIY®--Excellent Solution for Magnetic  Field Measurement

High Magnetic Field (0-20T) Measurement

Model

Principle

Type

Axis

DC Accuracy

Range

Resolution

G80

HALL

Handheld

1

2%

2T

10μT

G81

HALL

Handheld

1

0.8%

10T

1μT

G93

HALL

Handheld

3

1%, 0.5%

20T

10μT

G401

HALL

Desktop

1

0.05%

20T

1μT

X113

HALL

Sensor

1

0.05%

15T

TC of sensitivity: 30ppm/K

Low Magnetic Field(0- 2mT) Measurement

Gaussmeters for Low Magnetic Field

Model

Principle

Type

Axis

DC Accuracy

Range

Resolution

GF601

Fluxgate

Handheld

1

0.5%

1mT

0.1nT

GF603

Fluxgate

Handheld

3

0.25%

1mT

0.1nT

Note: 1T= 10kG; 1mT= 10G;  1μT= 10mG;   1nT= 10μG




G80 Handheld Gaussmeter






Description:

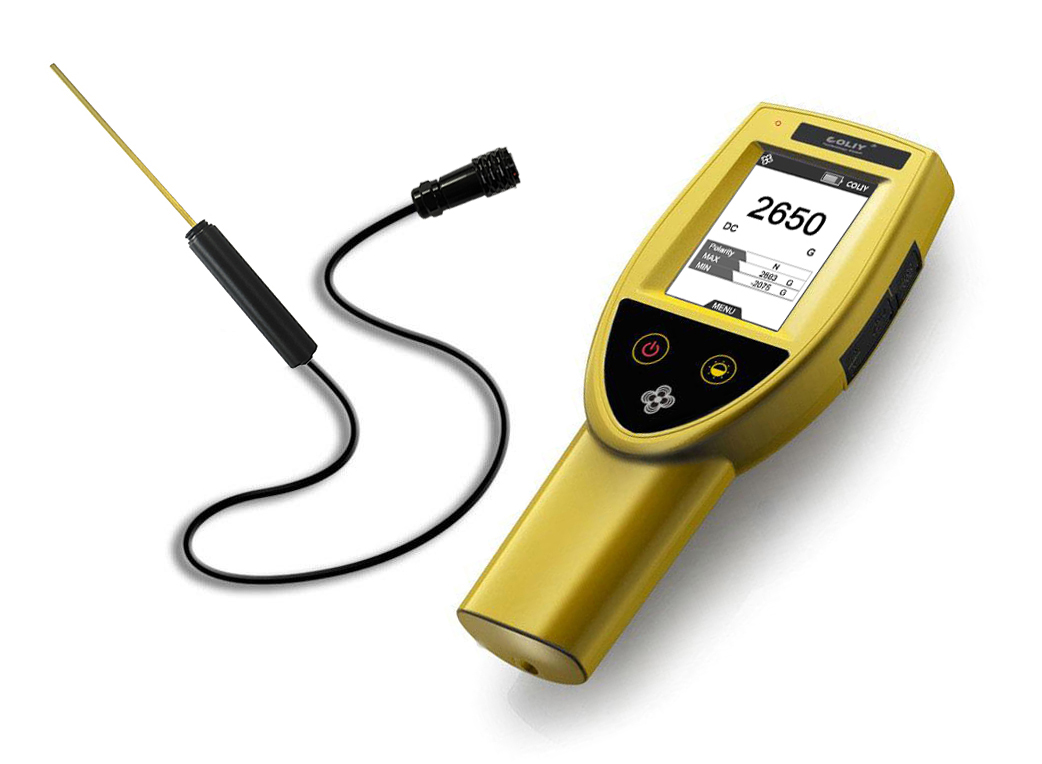

G80 Gaussmeter is an Excellent Cost-efficient handheld single-axis gaussmeter using COLIY's third-generation semiconductor galliumnitride (GaN) Hall sensor. Gallium nitride sensor has the characteristics of good temperature stability, unaffected by light, high linearity, and low noise,and its performance is ahead of the second-generation semiconductor galliumarsenide (GaAs) sensor technology. Adopted COLIY's Bypass Zero Technology and high-stability GaN hall sensor, Gaussmeter G80 has low zero drift, no need to zero adjustment, which improves the accuracy of data and the convenience of use.

The G80 Handheld Gaussmeter can be used to measure the surface magnetic field of permanent magnet materials, DC motors, speakers,magnetic separators, permanent magnet separators, and workpiece remanence measurement. It is widely used in magnetic material manufacturers and permanent magnet motor production. Manufacturers, permanent magnet iron separator manufacturers and application units, power industry and railway industry.

The Gaussmeter G80 uses a 3.2-inch black-and-white industrial resistive touch screen. It is easy to operate, and users can use itwithout reading the manual. Gaussmeter G80 allows measurements up to 2T (20kG) with a basic accuracy of ±2%, the resolution of 0.01mT (0.1G), and the frequency response of DC~100Hz. Gaussmeter G80 could be equipped with Axial Probe and Transverse Probe. Noise only 0.1G peak-peak within 60 seconds.

Besides, Gaussmeter G80 is powerful, with DC/AC measurement mode, magnetic field polarity (N/S) display function and maximum/ minimum measurement function. Gaussmeter G80 uses Fourier analysis method to measure AC magnetic field (RMS value), which is very suitable for measuring AC magnetic field of various waveforms (sine wave, square wave, triangle wave, trapezoidal wave, sawtooth wave, etc.).



Features

●  Bypass Zero  Technology

●  GUI  Operation System

●  New GaN Hall  Sensor.

●  3.2 inches  touch LCD

●  Max/Min/Hold  Function

●  S or N  Polar indication

●  Range: 2T  (20kG)

●  DC Basic  Accuracy: <±2%

●  Resolution:  0.01mT (0.1G)

●  Frequency  Response DC - 100Hz

●  AC magnetic  field measurement (RMS)

●  Temperature  Coefficient ±300ppm/

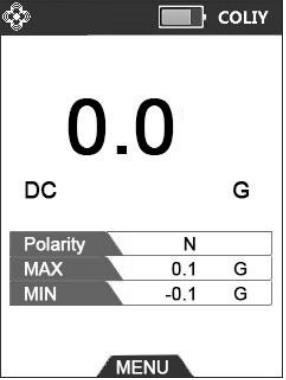

Bypass Zero Technology



During the use of an ordinary gaussmeter, the host and probe will has zero drift due to changes in temperature and hysteresis. Therefore, the probe must be frequently placed in the zero-gauss chamber for zero calibration.

The Gaussmeter G80 adopts unique Bypass Zero Technology and high stability GaN Hall sensor. Both the host and probe have low zero drift error and extremely low noise. Temperature and hysteresis do not affect the zero drift of the gaussmeter. There is no need for zero calibration, which greatly improves the accuracy and convenience of use.

GaN Hall Sensor



GaN materials have the characteristics of strong atomic bonds, high thermal conductivity, good chemical stability and strong radiation resistance. GaN is known as the third-generation semiconductor materials, after the first generation of Ge, Si semiconductor materials and the second generation of GaAs, InP semiconductor materials.

COLIY's third-generation semiconductor gallium nitride (GaN) Hall sensor has the characteristics of good temperature stability, high linearity and low noise, and its performance is ahead of the second-generation semiconductor gallium arsenide (GaAs) sensor technology.




Display Style

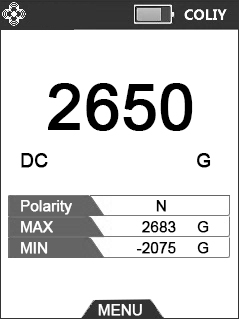

Black and white LCD screen shows magnificent data: DC/ AC RMS measurement mode, real-time magnetic flux density, N/S magnetic polarity, Maximum and Minimum.

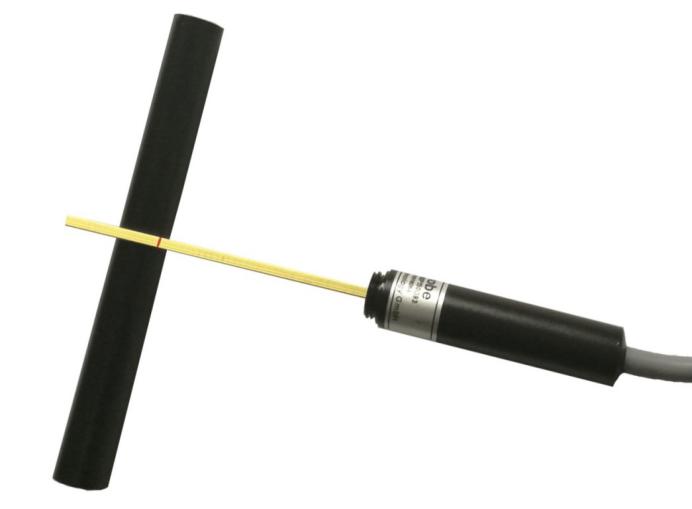

          Metal Protector of Probe


All probes of COLIY gaussmeter are protected by non-magnetic metal protectors (protective sleeves).

The non-magnetic metal protector can be tightened with the probe grip to protect the probe  from strong impacts, squeezing, etc. It can prevent the probe from falling damage from a height of 10 meters, and even resist hammer strikes. It is recommended that users tighten and fix the non-magnetic metal sleeve after completing the magnetic field measurement to protect the probe from damage to the greatest extent.



G80 Gaussmeter Specification:

Model

G80

Measurement  Specification

Accuracy(DC)

<±2%

Range

20kG (2T)

Resolution

0.1G(0.01mT)

Display Digits

4

Frequency Response [fT]

DC- 100Hz

DC Magnetic Field Noise

0.1G  (10uT)   [peak-to-peak value within  60s]

Typical Temperature Coefficient of Probe

±300ppm/

AC Measurement Mode

AC frequency  response range 10Hz-100Hz

RMS value,  suitable for measuring AC magnetic field of various waveforms (sine wave,  square wave, triangle wave, trapezoidal wave, sawtooth wave, etc.)

Zero Drift

Using Bypass Zero Technology, there is no zero drift,  and temperature and hysteresis have no effect on the zero drift of the magnetic  field.

Front Panel

Screen

3.2  inches black and white  resistive touch LCD, 320x240 Pixel

Units

Gauss(G), Tesla(T)

Display Update Rate

4 readings/second

Display Mode

DC, AC, MAX., MIN, Alarm, N/S Polarity  Indication

Probe

Hall Sensor

COLIY's third-generation semiconductor GaN Hall sensor

Probes

See “Probe Specifications”  for details.

Connector

6-core waterproof connector

Probe Grip and Protector

Non-magnetic aviation aluminum alloy, resistant to 10m drop

Probe Cable

6 shielded twisted pair core flexible cable; Standard CAT5e

Probe Cable Length

Standard 1.5m; Customizable longest length of 30 m

USB Interface

Function

only  for Charging interface: Used to connect a 5VDC charger or mobile power supply

Analog Output

Analog Output Function

N/A

Host Specification

Operating Temperature

-20°C   to  +60°C

Warm-up time

Can be used immediately after the  device is turned on

30 minutes to meet the best  performance

Host Temperature  Coefficient

<±50ppm/; Negligible impact on accuracy within  the operating temperature range

Storage Temperature

- 20°C   to  +80°C

Ambient Magnetic Field

<1kG(0.1T)

Battery

Rechargeable 4400mAH Li-ion

Operating Battery Life

>15 hours (Test in standard test  environment, working time will be reduced in low temperature environment)

Power Supply

5VDC; could be charged by a mobile  power supply

Dimension

238  mm W × 95 mm H × 42  mm D

Weight

350g

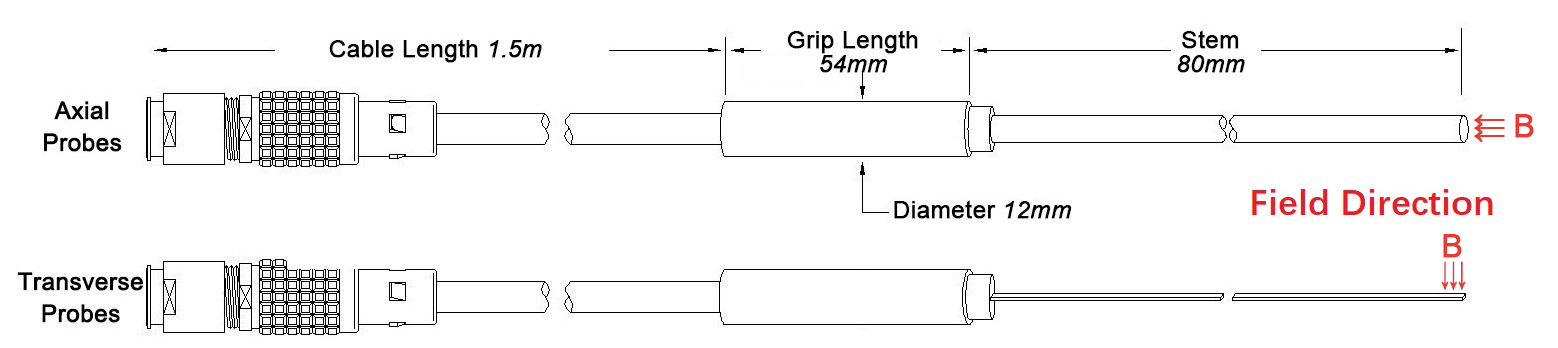

ProbesSpecification


Probe Model

Range

Frequency

Response

Stem Dimension

(mm)

Operating Temperature

(°C)

DC Accuracy

(25°C)

Stem Surface Material

Transverse



T08M150G80

20kG

(2T)

DC-100Hz

80*2.2*1

-10  - +60

±2%

Metal

Axial


A08M150G80

20kG

(2T)

DC-100Hz

80*Φ6

-10  - +60

±2%

Metal





The most  popular Package

Package Product No. G8001: Gaussmeter G80 +  Probe T08M150G80



Description of Probe Type Selection


T

08

M

150

G80

PROBE  TYPE



A  - AXIAL

T  - TRANSVERSE



STEM  LENGTH



08  - 8 cm

PROBE  STYLE



M  – METAL

P – PLASTIC



CABLE  LENGTH



150  – 3750px

GAUSSMETER  MODEL



G80 – G80  probe
