- Instrumentation Quality
- Excellent linearity error : 0.05%
- TC of sensitivity: 30ppm/K
- Max Range : 15T
COLIY®--Excellent Solution for Magnetic Field Measurement | ||||||
High Magnetic Field (0-10T) Measurement | ||||||
Model | Principle | Type | Axis | DC Accuracy | Range | Resolution |
HALL | Sensor | 1 | 0.05% | 15T | TC of sensitivity: 30ppm/K | |
HALL | Handheld | 1 | 2% | 2T | 10μT | |
HALL | Handheld | 1 | 0.8% | 10T | 1μT | |
HALL | Handheld | 1 | 0.8% | 150mT | 0.1μT | |
HALL | Handheld | 3 | 0.8% | 10T | 1μT | |
HALL | Desktop | 1 | 0.05% | 10T | 1μT | |
HALL | Desktop | 3 | 0.1% | 10T | 1μT | |
GSP301D | HALL | Transmitter | 1 | 0.5% | 10T | 1μT |
GSP303D | HALL | Transmitter | 3 | 1% or 0.2% | 10T | 1μT |
Low Magnetic Field(0- 2mT) Measurement | ||||||
Gaussmeters for Low Magnetic Field | ||||||
Model | Principle | Type | Axis | DC Accuracy | Range | Resolution |
Fluxgate | Sensor | 3 | 0.5% | 1500μT | Output ±10V | |
Fluxgate | Transmitter | 3 | 0.2% | 1mT | 0.1nT | |
GMR | Handheld | 1 | 0.8% | 600μT | 10nT | |
GMR | Handheld | 3 | 0.8% | 600μT | 10nT | |
Fluxgate | Handheld | 1 | 0.5% | 200μT | 1nT | |
Fluxgate | Handheld | 3 | 0.5% | 200μT | 1nT | |
Fluxgate | Handheld | 1 | 0.5% | 1mT | 0.1nT | |
Fluxgate | Handheld | 3 | 0.25% | 1mT | 0.1nT | |
Fluxgate | Desktop | 3 | 0.1% | 1mT | 0.01nT | |
Note: 1T= 10kG; 1mT= 10G; 1μT= 10mG; 1nT= 10μG | ||||||
Features: l Instrumentation Quality l Excellent linearity error : 0.05% l TC of sensitivity: 30ppm/K l Max Range : 15T |  |
Typical Applications l Current and power measurement l Magnetic field measurement l Control of brushless DC motors l Rotation and position sensing l Measurement of diaphragm |

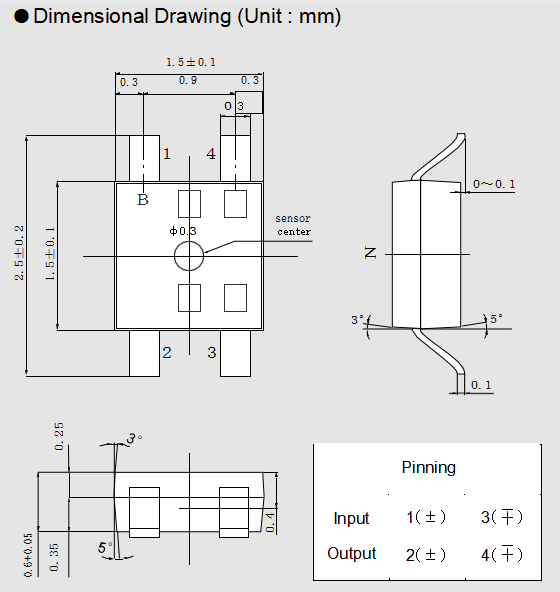

The third-generation semiconductor gallium nitride (GaN) Hall sensor X113, built into a SMT package (SOT-143), has the characteristics of good temperature stability, high linearity and low noise, which is superior to the second-generation semiconductor gallium arsenide (GaAs) sensor technology.
Hall sensor X113 is outstanding for its excellent linearity error 0.05% and very low temperature coefficients 30ppm/K. While the sensor is operated with constant current, the output hall voltage is directly proportional to a magnetic field acting perpendicular to the surface of the sensor.
Maximum Ratings
Parameter | Symbol | Value | Unit |
Operating temperature | TA | – 40 ~ + 100 | °C |
Storage temperature | Tstg | – 60 ~ + 130 | °C |
Supply current | I1 | 30 | mA |
Thermal conductivity, soldered in air | GthC GthA | ≥2.2 ≥1.5 | mW/K mW/K |
Characteristics (TA = 25℃)
Parameter | Condition | MIN | TYP | MAX | Unit |
Nominal supply current | I1N | 20 | 30 | mA | |
Open-circuit hall voltage I1 = I1N, B = 0.1 T | V20 | 7.0 | 9.0 | mV | |
Ohmic offset voltage I1 = I1N, B = 0 T | VR0 | 0.1 | 0.3 | mV | |
Active area (in the sensor center) | 0.07 | mm2 | |||
Linearity of Hall voltage B = 0.1~2.0 T | FL | 0.05 | % | ||
Input resistance B = 0 T | R10 | 60 | 75 | Ω | |
Output resistance B = 0 T | R20 | 60 | 75 | Ω | |
Temperature coefficient of the open-circuit Hall-voltage I1 = I1N, B = 0.5 T | TCV20 | -30 | ppm/K | ||
Temperature coefficient of the internal resistance B = 0 T | TCR10, R20 | 0.08 | %/K | ||
Temperature coefficient of ohmic offset voltage I1 = I1N, B = 0 T | TCVR 0 | 1 | 4 | μT/K | |
Noise figure | F | 10 | dB | ||
Range | 10 | 15 | Tesla |
Please contact sales@coliy.com for the latest detailed datasheet.
