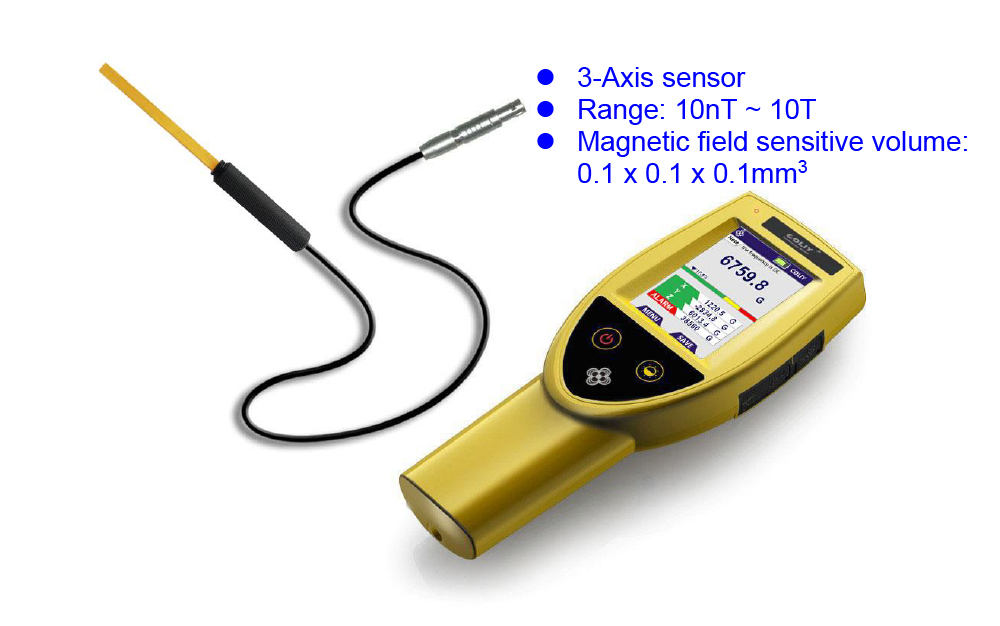

G93 Handheld Wide-range 3-Axis Gaussmeter

• Range from 1μT(0.01G) to 20T(200kG)
• DC Basic Accuracy: 1% or 0.5%
• Frequency response: DC to 1kHz
• Orthogonality error< 0.1°
• High spatial resolution(0.1 x 0.1 x 0.1mm3)
• GUI Operation System
• Display trend graph & Alarm
• Display XYZ components and vector

Download


COLIY®--Excellent Solution for Magnetic  Field Measurement

High Magnetic Field (0-20T) Measurement

Model

Principle

Type

Axis

DC Accuracy

Range

Resolution

G80

HALL

Handheld

1

2%

2T

10μT

G81

HALL

Handheld

1

0.8%

10T

1μT

G93

HALL

Handheld

3

1%, 0.5%

20T

10μT

G401

HALL

Desktop

1

0.05%

20T

1μT

X113

HALL

Sensor

1

0.05%

15T

TC of sensitivity: 30ppm/K

Low Magnetic Field(0- 2mT) Measurement

Gaussmeters for Low Magnetic Field

Model

Principle

Type

Axis

DC Accuracy

Range

Resolution

GF601

Fluxgate

Handheld

1

0.5%

1mT

0.1nT

GF603

Fluxgate

Handheld

3

0.25%

1mT

0.1nT

Note: 1T= 10kG; 1mT= 10G;  1μT= 10mG;   1nT= 10μG




G93 Handheld Wide-range 3-Axis Gaussmeter



Description:

With many years of magnetic field testing experience, G93 Handheld 3-Axis Gaussmeter, introduced by COLIY, is designed for scientific research institutions, universities, laboratories, industry, manufacturing andother users. G93 Gaussmeter boasts with an industrial class 3.2 inches touch panel display that enables customers’ instantaneous and simultaneous measurement results (Max/ Min/ Peak/ Hold/ Alarm/ Polarity, XYZ axis andvector of Magnetic Flux Density, and Trend Graph etc.).

There is a unique feature for 3-axis probe of G93: With the MEMS manufacturing technology, 3-axis probe provides very high spatial resolution (magnetic field sensitive volume 0.1 x 0.1 x 0.1mm3), orthogonality error is less than 0.1°, and the thickness of 3-axis probe is only 2mm.Gaussmeter G93 could fulfill many kinds of applications of institutes,universities and high technology enterprises.

Gaussmeter G93 could be equipped with different kinds of 3-Axis Probes: Standard Probe, Wide-range Probe and Temperature sensor-contained Probe. Its measurement range spans 107 from 1μT (0.01G) to 20T (200kG) with a basic accuracy of 1% or 0.5%.

Gaussmeter G93 with standard probe allows measurements up to 30kG (3T), and the frequency response of DC~ 1kHz; Gaussmeter G93 with wide-range probe, suitable for super conducting magnet, allows measurements up to 200kG (20T), and the frequency response of DC~ 1kHz; Temperature sensor-contained probes (probes with built-in temperature sensor) have the function of temperature compensation; temperature sensor-contained probes are strongly recommended for better precision and stability when the temperature changes.

Gaussmeter G93 has passed the CE certification and EMC (Electromagnetic Compatibility) test.





Features

l  Ergonomically  designed

l  GUI  Operation System

l  3.2 inches  color touch LCD

l  Full 5  display digits

l  Max/Min/Hold  Function

l  Smart record and review

l  Display  trend graph & Alarm

l  Display XYZ axis and vector

l  S or N  Polar indication

l  Range from 1μT(0.01G)  to 20T(200kG)

l  DC Basic Accuracy:  1% or 0.5%

l  Frequency  response: DC to 1kHz (-3dB)

l  Orthogonality error< 0.1°

l  Magnetic  field sensitive volume 0.1  x 0.1 x 0.1mm3        l  Typical temperature  coefficient ±500ppm/°C

l  Wide-range Probe (20T) available

l  Thickness of  3-axis probe: only 2mm

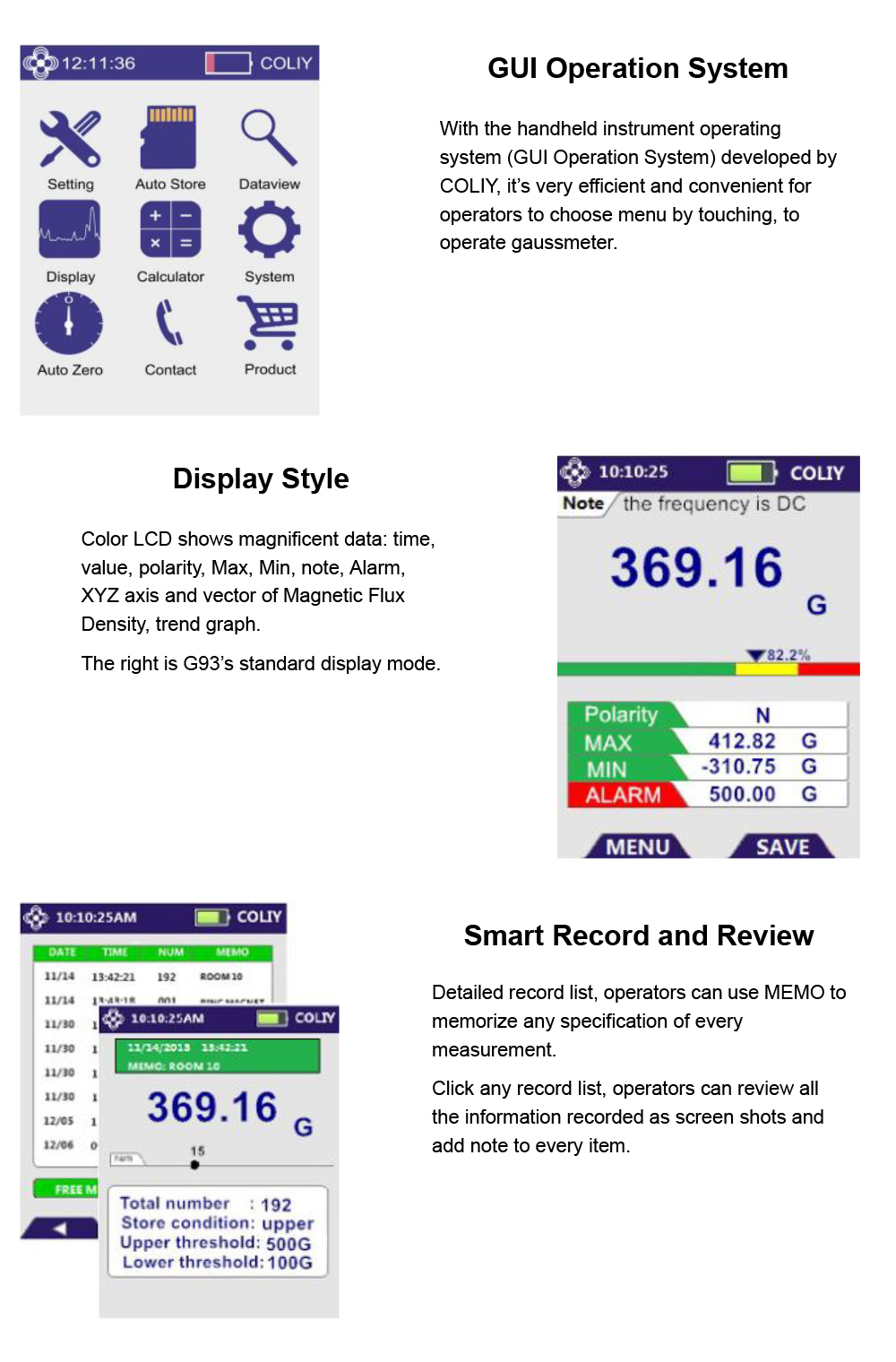

GUI Operation System




With the handheld instrument operating system (GUI Operation System) developed by COLIY, it’s very efficient and convenient for operators to choose menu by touching, to operate gaussmeter.

Display Style



Color LCD shows magnificent data: time,value, polarity, Max, Min, note, Alarm, XYZ axisand vector of Magnetic Flux Density, trend graph.

The right is G93’s standard display mode.





Smart Record and Review



Detailed recordlist, operators can use MEMO to memorize any specification of every measurement.

Click any record list, operators can review all the information recorded as screen shots and add note to every item.

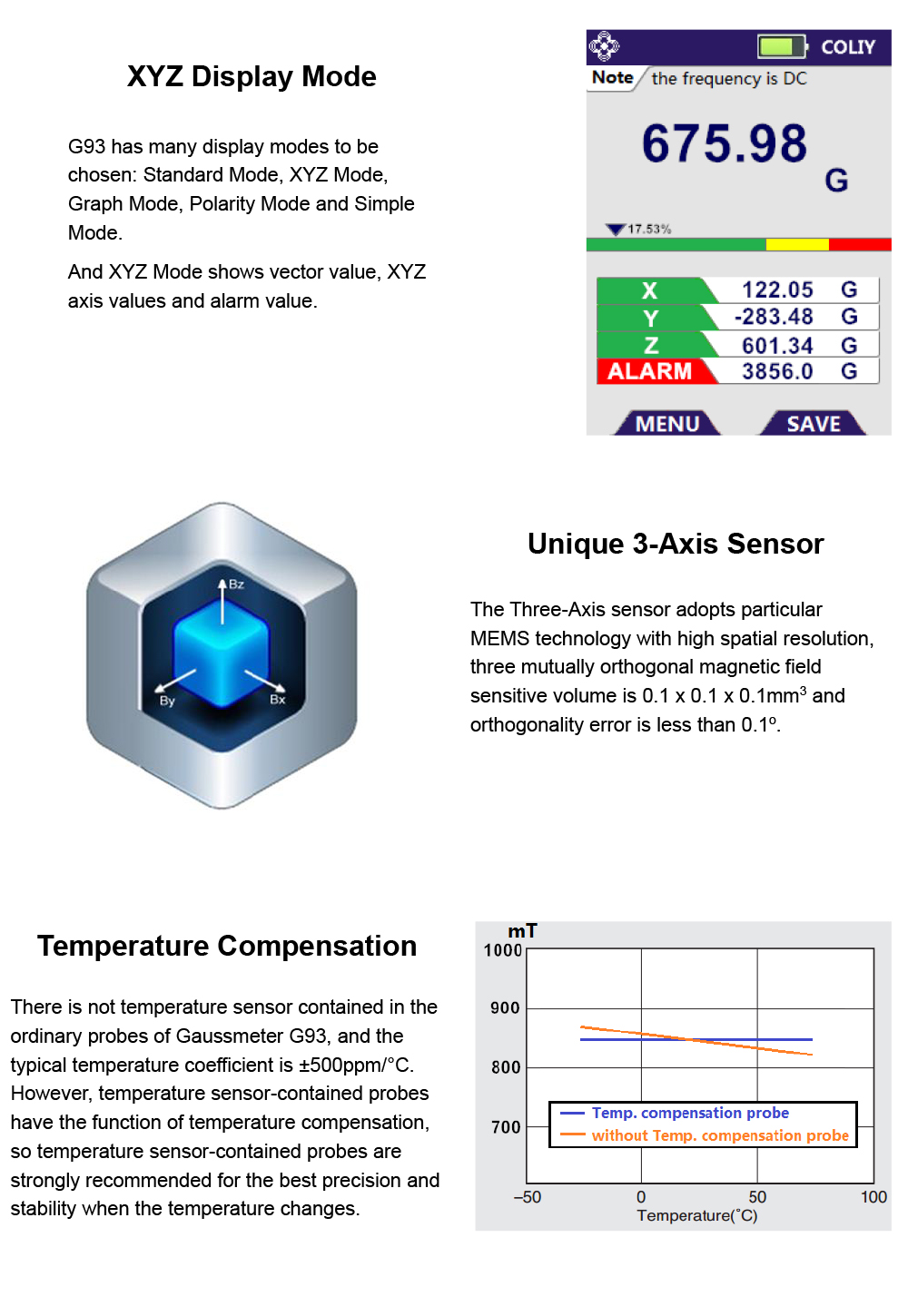

XYZDisplay Mode



G93 has many display modes to be chosen: Standard Mode, XYZ Mode, Graph Mode, Polarity Mode and Simple Mode.

And XYZMode shows vector value, XYZ axis values and alarm threshold value.





Unique3-Axis Sensor



TheThree-Axis sensor adopts particular MEMS technology with high spatial resolution, three mutually orthogonal magnetic field sensitive volume is 0.1 x0.1 x 0.1mm3 and orthogonality error is less than 0.1o.

Temperature Compensation



There is not temperature sensor contained in the ordinary probes of Gaussmeter G93, and the typical temperature coefficient is ±500ppm/°C. However, temperature sensor-contained probes have the function of temperature compensation, so temperature sensor-contained probes are strongly recommended for the best precision and stability when the temperature changes.

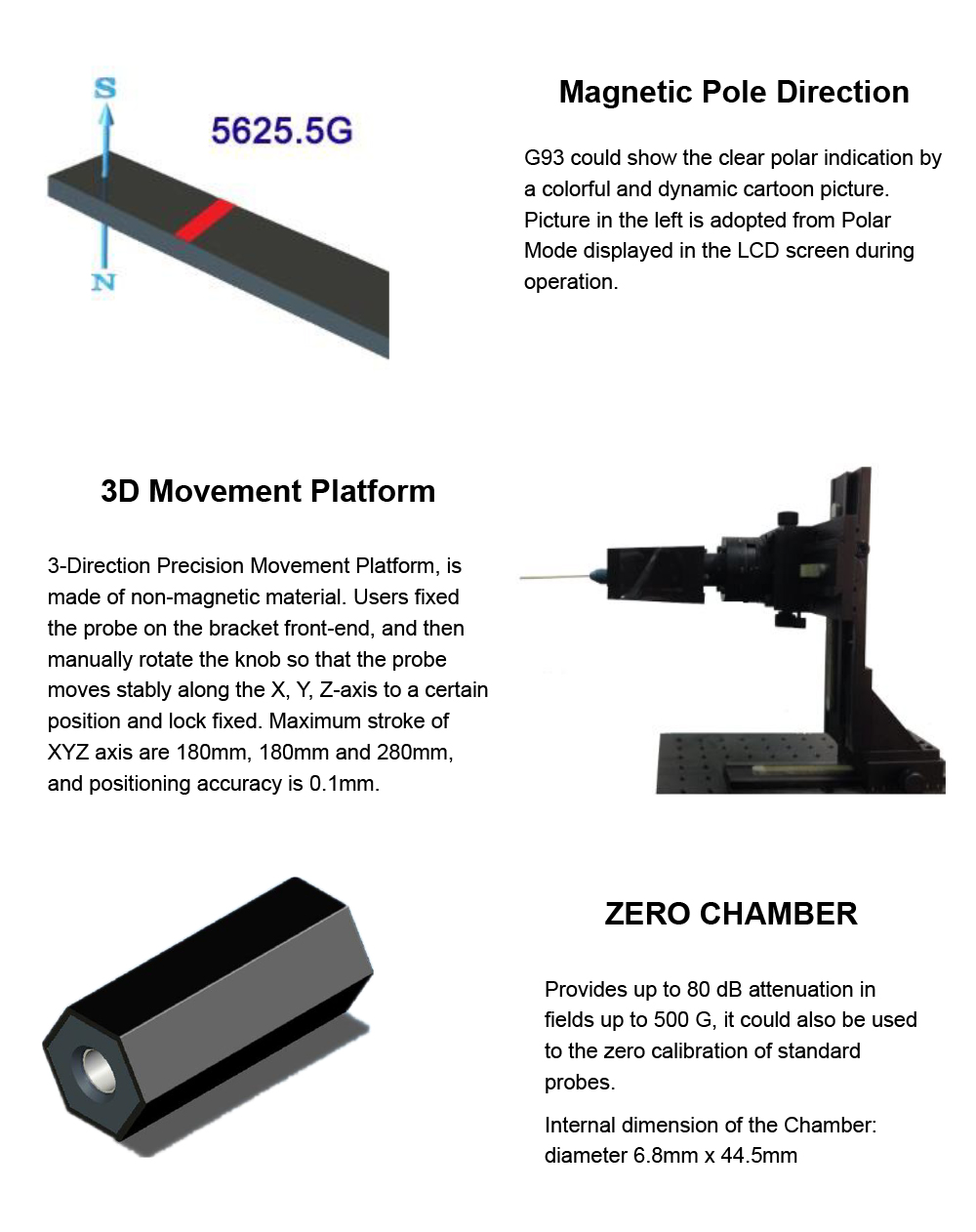

Magnetic PoleDirection



G93 could show the clear polar indication by a colorful and dynamic cartoon picture. Picture in the left is adopted from Polar Mode displayed in the LCD screen during operation.

3DMovement Platform



3-Direction Precision Movement Platform, is made of non-magnetic material. Users fixed the probe on the bracket front-end, and then manually rotate the knob so that the probe moves stably along the X, Y, Z-axis to a certain position and lock fixed.Maximum stroke of each axis is 150mm, and positioning accuracy is 0.1mm.





ZERO CHAMBER



Provides up to 80 dB attenuation in fields up to 500 G, it could also be used to the zero calibration of standard probes.

Internal dimension of the Chamber: diameter 6.8mm x 44.5mm

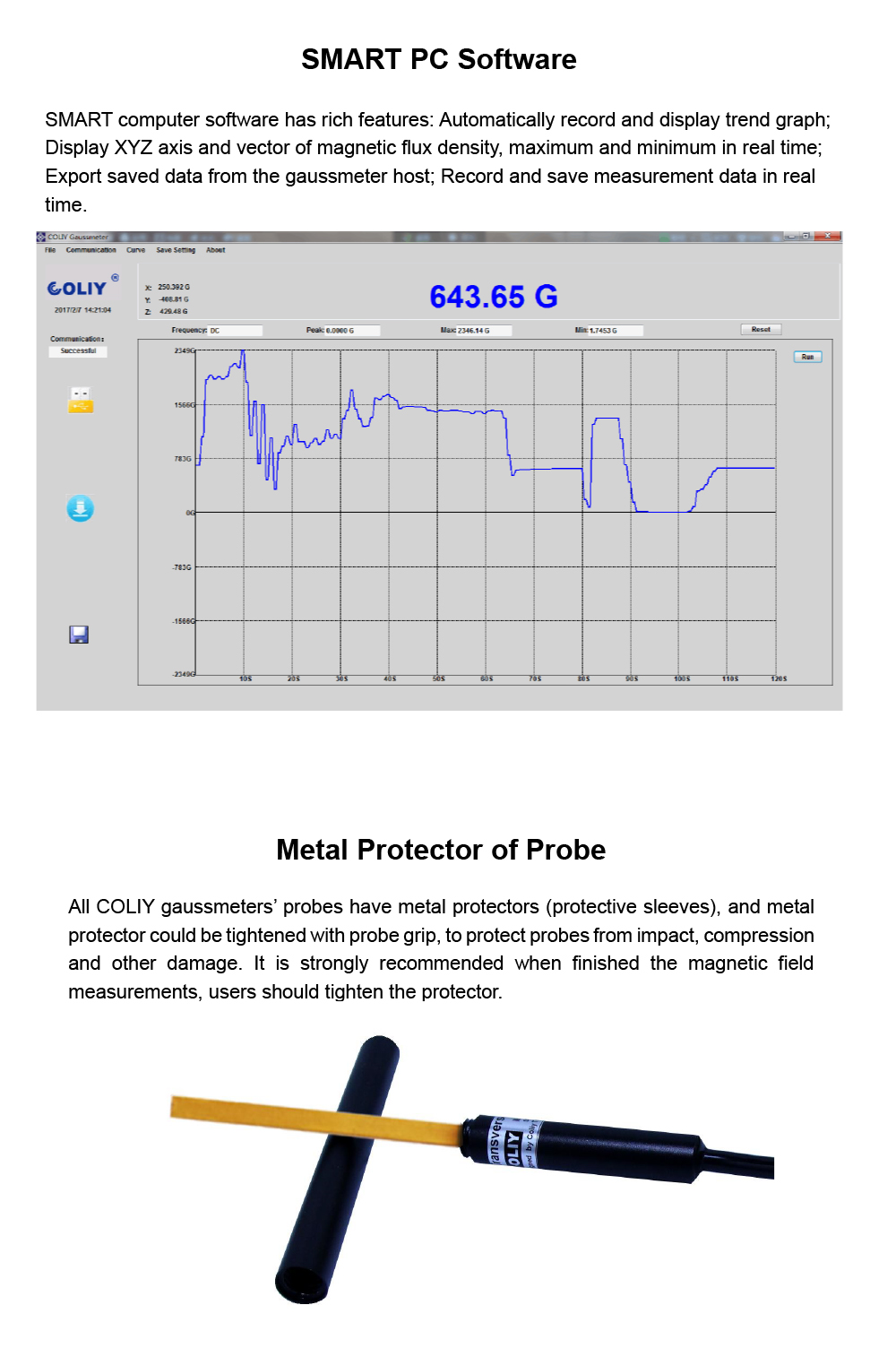

SMART PC Software

SMART computer software has rich features: Automatically record and display trend graph; Display XYZ axis and vector of magnetic flux density, maximum and minimum in real time; Export saved data from the gaussmeter host; Record and save measurement data in real time.




Metal Protector of Probe

All COLIY gaussmeters’ probes have metal protectors (protective sleeves), and metal protector could be tightened with probe grip, to protect probes from impact, compression and other damage. It is strongly recommended when finished the magnetic field measurements, users should tighten the protector.





G93 Gaussmeter Specification:

Model

G93

Equipped with Probe

Standard Probe

Wide-range Probe

Measurement  Specification

Accuracy/Axis (DC)

±1% Reading ± 0.1% FS

±0.5% Reading ± 0.05% FS

Range

1kG, 10kG, 30kG

(0.1T, 1T, 3T)

10kG,  30kG, 200kG

(1T, 3T, 20T)

Best Resolution

0.01G(1μT)

Display Digits

5

Display Resolution

Display Range

10.00G~  999.99G



0.01G(1μT)

1.0000kG~  9.9999kG

0.1G(0.01mT)

10.000kG~  99.999kG

1G(0.1mT)

100.00kG~  199.99kG

10G(1mT)

Frequency Response

DC- 1kHz (-3dB)

Typical Temperature Coefficient

±500ppm/  (Regular 3-axis probe)

±50ppm/ (Probe with temperature sensor)

Front Panel

Screen

3.2  inches color resistive touch LCD, 320x240 Pixel

Units

Gauss(G), Tesla(T), Amperes per meter  (A/m)

Display Update Rate

3 readings / second

Display Mode

DC, AC, XYZ Display mode, MAX., MIN,  Alarm, Polarity Indication, Trend Graph etc.

Probe

Probes

See "Probe Specifications"  for details.

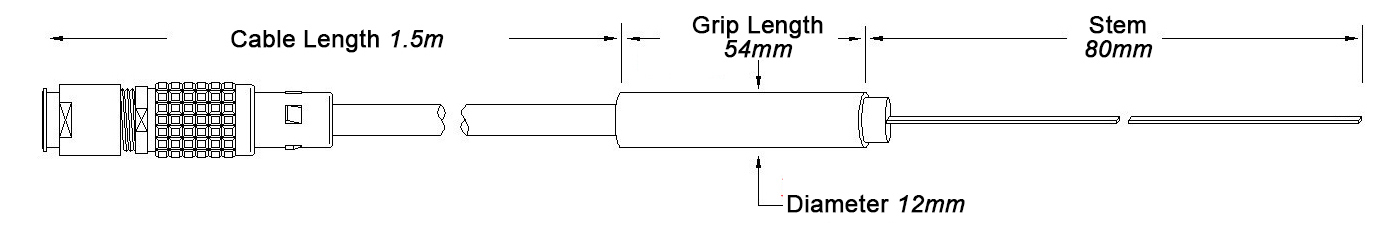

Probe Cable Length

Standard 1.5m; Customizable longest length of 30 m

USB Interface

Function

1,  Communication Interface: to connect PC with gaussmeter host for monitoring  the measurement;

2,  Charging interface: to connect PC or mobile power with gaussmeter host for  charging

Software/ Driver

SMART PC Software without any driver

Host Specifications

Operating Temperature

+15°C   to  +35°C (Rated Accuracy)

-10°C   to  +60°C (Reduced accuracy)

Storage Temperature

- 20°C   to  +75°C

Ambient Magnetic Field

<10kG(1T)

Battery

Rechargeable 4500mAH Li-ion

Operating Battery Life

>24 hours(Standard Testing  Environment)

Dimension

238  mm W × 95 mm H × 42 mm D

Weight

350g

Certification

CE Certification, EMC Certification


Probes Specification


Model  G93 Gaussmeter Probes

Probe Model

Range

Frequency

Response

Stem Dimension  (mm)

Operating Temp. (°C)

DC Accuracy

(25°C)

Stem

Surface Material

Standard

Y08P150G93

Y08P150G93T

30kG

(3T)

DC -1kHz

80*5*2

-20 - +75

±1%

Plastic

Y08P150G93plus

Y08P150G93Tplus

30kG

(3T)

DC -1kHz

80*5*2

-20 - +75

±05%

Plastic

Wide-range

Y08W150G93

Y08W150G93T

200kG

(20T)

DC -1kHz

80*5*2

-20 - +75

±1%

Plastic

Y08W150G93plus

Y08W150G93Tplus

200kG

(20T)

DC -1kHz

80*5*2

-20 - +75

±05%

Plastic

Note:

1, Option “T”: Temperature sensor contained Probe, has thefunction of temperature compensation, and the typical temperature coefficientis ±50ppm/;

2, Each probe’s fully calibrated measurement range: ≤±20kG (±2T);

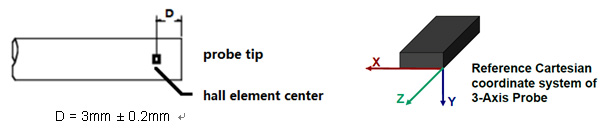

The position ofsensor center & each axis sensing direction



Optional Accessories


Model

Descriptions

ZC10

Zero chamber, provides up to 80 dB attenuation in fields  up to 500 G and can be used with standard probes. Internal dimension of the  Chamber: diameter 6.8mm x 44.5mm

SAMRT PC  Software

PC SOFTWARE for Gaussmeter

GHOLD100

3-Direction Precision Movement  Platform, is made of non-magnetic material. Users fixed the probe on the  bracket front-end, and then manually rotate the knob so that the probe moves  stably along the X, Y, Z-axis to a certain position and lock fixed. Maximum  stroke of each axis is 150mm, positioning accuracy of 0.1mm; center load:  10kg; weight: 3.5kg



The most  popular Package

ORDER  G9301: Gaussmeter G93 + Probe Y08P150G93

ORDER  G9302: Gaussmeter G93 + Probe Y08P150G93 + Zero Chamber ZC10



Description of Probe Type Selection


Y

08

P

150

G93

T

PROBE TYPE



A  - AXIAL

T  - TRANSVERSE

X  - 2 AXIS

Y  - 3 AXIS



STEM

LENGTH



06  - 6 cm

08  - 8 cm

10  - 10 cm

25  - 25 cm





PROBE STYLE



C– CRYOGENIC

F – FLEXIBLE

H – HIGH TEMP.

L  – LOW FIELD

M  – METAL

P – Plastic

U – ULTRATHIN

W  – WIDE FIELD

CABLE

LENGTH



150  – 150cm



GAUSSMETER MODEL



G91 – G91 probe

G92 – G92 probe

G93 – G93 probe



TEMPERATURE

COMPENSATED



T  - YES

BLANK  - NO
