Home > Products > Nuclear radiation scanner
Model 910 Handheld Radiation Scanner

• Ergonomically designed with a comfortable hand feel
• Large LCD with bar graph display
• Types of measured Ray: α β γ and x-ray
• Display units complete: CPS, CPM, Sv/h, rem/h
• Accumulates the radiation measurement data
• Design is compact and anti-impact, easy to carry
• History data can be uploaded to PC
• Patent in tracking algorithm realized high stability and fast response

Download

Radiation Classification List

Detectable ray

Product mode

Sensor

Range

γ Sensitivity(Cs137,1µSv/h)

Characteristics

αβ

R700
 (ProbeCS170)

Zinc + plastic scintillator

1Mcps

--

Area used 170 cm2

R700
 (ProbeCS30D)

Zinc + plastic scintillator

1Mcps

--

Area used 30 cm2

αβγ

R500

Geiger counter

1mSv/h

7cps

Large end window cover leather

Unresolved ray category

910

Geiger counter

1mSv/h

2cps

Small end window cover leather

Unresolved ray category

R100

Geiger  counter

100mSv/h

2cps

Personal Dose Alarm, Energy range 20keV~3MeV

R750

Φ80x80mm

Plastic  scintillator

0.2mSv/h

2000cps

Environmental, ultra-high sensitivity

Energy range15keV~7MeV (±15%)

R700
  (ProbeCS75)

Φ75x75mm  Plastic scintillator

0.2mSv/h

1500cps

Environmental, high sensitivity

R700
  (ProbeCS30A)

Φ30x30mm NaI Crystal

1mSv/h

350cps

High efficiency for γ ray detection

1 second quick response

Neutronγ

R60N

10×10×10(mm3)

H  neutron gamma probe

10mSv/h(Neutron)
 20mSv/h(γ)

0.5 cps(Cf-252 )

One sensor can detect neutron and γ ray at  the same time

Gamma suppression  ratio:1000:1(137Cs)

Same volume, the sensitivity is 20 times higher than the 3He  sensor



20×20×20(mm3)

H  neutron gamma probe

2.7 cps(Cf-252 )



Model 910 Handheld Radiation Scanner





Description

Radiation scanner Model 910 is an upgraded version of the original Model 900. In 2011 Coliy Technology GmbH redesigned the Radiation scanner Model 910 to make it easier to operate with a much higher reliability, Its buttons are simplified into 8, which makes the interface more user-friendly, its internal circuitry has been optimized to be more reliable; and its memory has been expanded to stock more data.

The Radiation scanner Model 910 was designed to help recognize the potential risk of terrorist attack after 9.11 Incident. With its powerful functions it can be used under severe adverse conditions. Due to its resistances to high impact and low temperature it offers reliable and precise measurement data. The main structure of the Radiation scanner 910 is small, light with a strong shell to protect it. It can detect α β γ and X-rays as described and adopted by the nuclear radiation sensor standards laid down by the American Bureau of Standards. Range of measurement is from 0.01µSv/h to 1000µSv/h. It is a small sized radiation sensor with the best performance characteristics in the current market.

Applications

Radiation scanner Model 910 can be used widely in the fields of pharmaceutical factory, laboratory, power plants, quarries, emergency rescue stations, metal treatment plants, underground oil fields, and oil pipeline equipment, environmental protection, police station etc. It is used for:

Inspecting underground water radium pollution

Inspecting radioactivity of underground drilling pipes and equipment

Inspecting radon radiation and cesium pollution of surrounding environment

Inspecting radioactivity of architecture materials such as stone etc

Inspecting radioactivity of porcelain tableware and glass etc

Inspecting local radiation leakage and nuclear radiation pollution

Inspecting the danger of nuclear radiation in landfill and garbage dump

Inspecting harmful radiation of personal precious property and jewelry

Inspecting X-ray intensity of Medical and industrial X-ray instrument from

Product Features

Ergonomically designed with a comfortable hand feel

Large LCD with bar graph display

Types of measured Ray: α β γ and x-ray

Ray selection switch

Display units complete: cps, cpm, Sv/h, rem/h

Accumulates the radiation measurement data

Calibration every five years

Design is compact and anti-impact, easy to carry

History data can be uploaded to PC

Patent in tracking algorithm realized high stability and fast response

Specifications

Types of measured Ray

α β γ and Χ ray

Range

Radiation dose rate: 0.01µSv/h-1000µSv/h

Impulse dose rate: 0-30.000cpm,0-5.000cps

Radiation dose accumulation: 0.001µSv-999999Sv

Impulse dose accumulation: 0-999999

Sensitivity

1µSv/h≥2cps (Cs137)

Energy response

50keV-3MeV

Ray selection switch

α+ β +γ (without shielding)

β +γ (foil shielding approx. 0.2 mm)

γ (aluminum shielding approx. 3 mm)

Sensor

GM tube

Background value stability

±0.02µSv/h (8 hours)

Output port

USB Port (with special USB extend cable option, which can extend to 100M)

Anti saturation

Exceed the maximum reading of up to 100 times

Display

Large LCD, with bar graph display

Calibration

Calibration factor adjustable

Alarm function

Audible and visual alarm, alarm value setting fully adjustable, default: 5μSv/h

Precision

±15%

Storage

Manually or automatically

Software

Transmit data in real-time to computer for displaying, analyzing and recording

Influence of the electromagnetic wave

Negligible

10 times geomagnetic field influence

None

Working temperature

-20 to 60

Storage temperature

-30 to 70

Atmospheric pressure

75kPa-110kPa

Weight

250g

Dimension

L170mm, W74mm, H30mm

Battery power

3 AAA battery, Continuous operation for up to 30 days

Quality certifications

European CE, US FCC15

Warranty

1 year

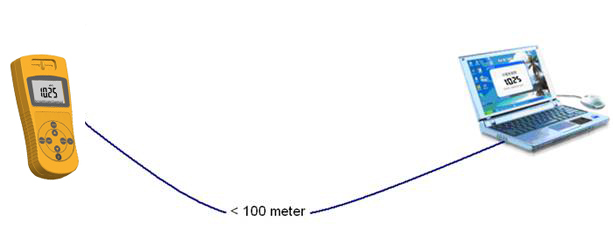

Data is transmitted in real-time to computer for display and analyzing.
