Home > Products > Nuclear radiation scanner
R700 Multi Probes Radiation Detector

• Graphical interface operating system
• 3.2 inches touch color LCD
• The host identifies probe built-in probe parameters and calibration parameters automatically
• Remove background value
• Huge memory capacity, can be set automatically or manually
• 7000mAh rechargeable lithium batteries
• History data can be uploaded to PC

Download

Radiation Classification List

Detectable ray

Product mode

Sensor

Range

γ Sensitivity(Cs137,1µSv/h)

Characteristics

αβ

R700
 (ProbeCS170)

Zinc + plastic scintillator

1Mcps

--

Area used 170 cm2

R700
 (ProbeCS30D)

Zinc + plastic scintillator

1Mcps

--

Area used 30 cm2

αβγ

R500

Geiger counter

1mSv/h

7cps

Large end window cover leather

Unresolved ray category

910

Geiger counter

1mSv/h

2cps

Small end window cover leather

Unresolved ray category

R100

Geiger  counter

100mSv/h

2cps

Personal Dose Alarm, Energy range 20keV~3MeV

R750

Φ80x80mm

Plastic  scintillator

0.2mSv/h

2000cps

Environmental, ultra-high sensitivity

Energy range15keV~7MeV (±15%)

R700
  (ProbeCS75)

Φ75x75mm  Plastic scintillator

0.2mSv/h

1500cps

Environmental, high sensitivity

R700
  (ProbeCS30A)

Φ30x30mm NaI Crystal

1mSv/h

350cps

High efficiency for γ ray detection

1 second quick response

Neutronγ

R60N

10×10×10(mm3)

H  neutron gamma probe

10mSv/h(Neutron)
 20mSv/h(γ)

0.5 cps(Cf-252 )

One sensor can detect neutron and γ ray at  the same time

Gamma suppression  ratio:1000:1(137Cs)

Same volume, the sensitivity is 20 times higher than the 3He  sensor



20×20×20(mm3)

H  neutron gamma probe

2.7 cps(Cf-252 )


R700 Multi probes Radiation Detector



Description

The R700 multi-probes radiation detectorin the traditional handheld operating system on a comprehensive upgrade to the new development of the Coliy graphical interface operating system, greatlysimplifying the operational process. The R700 is equipped with a 3.2 inchestouch color LCD, allows customers to read the data clearly. With variousprobes, R700 can detect the radiation measurement α β γ Χ and neutron. The energy responseranges from 2keV to 7MeV, high resolution, fast response, and increased patented background removal algorithm, can remove 95% of the background. The probe is made of advanced aviation aluminum, seamless, water proof and dustproof. The R700 owns hugememory capacity to store massive amounts of data which can be uploaded to PC. Probe cable up to 500meters (to be customized), optional wireless probe, greatly facilitate the useof customers.

The R700 multi-probes radiation detectoris equipped with clarity and large touch screen, not only can display the realvalue, maximum , minimum and alarm threshold at the same time, but also theradiation dose rate can be shown through the time domain waveform figure, andthe dose rate articulation can be done automatically. The host identifies probebuilt-in probe parameters and calibration parameters automatically and toremind users when to calibrate next time. The R700has European CE and ISO9001 quality certification.

Application

R700 multi probes radiation detector could be widely used in restaurants, hotels, families, public places, laboratories, power plants, quarries, emergency rescue stations, metal treatment plants, undergrounds and underwater oil fields and oil pipeline equipment, environmental protection, police stations and other departments. It can also be used to:

Inspect food pollution

Inspect water pollution

Inspect environmental pollution

Inspect underground water, radium pollution

Inspect radioactivity of porcelain, tableware and glass etc

Inspect local radiation leakage and nuclear radiation pollution

Inspect radioactivity of materials architecture, such as stone etc

Inspect radioactivity of underground drilling pipes and equipment

Inspect harmful radiation in personal precious property and jewelry

Inspect landfill and garbage dumps in danger of nuclear radiation contamination

Inspect X-ray intensity of Medical and industrial X-ray instrumentation


Product Features

Graphical interface operating system

Chinese and English interface both available

3.2 inches touch color LCD

Connect different types of probes

The host automatically recognizes the probe and automatically prompts the next calibration date

Remove background value

Display various kinds of measurement data

Huge memory capacity, can be set automatically or manually

7000mAh rechargeable lithium batteries

History data can be uploaded to PC

Instrument Specification

Range



See probe specification

Types of probe



See probe specification

Display unit



Sv/h, Gy/h, rem/h, Sv, cps, cpm, Bq/ cm2

Operating temperature



-20ºC to 60ºC

Storage temperature



-30ºC to 70ºC

Display screen



3.2 inches touch color LCD

Display mode



Standard mode; Time domain chart mode

Operating system



Graphical interface operating system

Display interface is Chinese and English

Alarm



Audible and visual alarm, user-defined range

Alarm threshold value



User-defined

Communication interface



USB

Telescopic link(Optional)





Length 153cm (customize)

Size



L238mm, W95mm, H42mm

Weight



Meter:350g

Battery power



7000mAh rechargeable lithium batteries

Battery continuous working time

Power saving mode



24 hours

40 hours

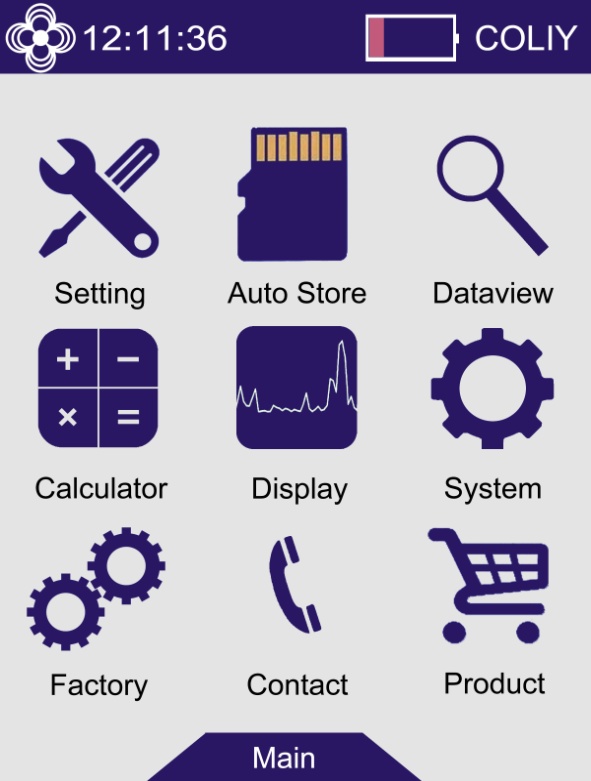

Graphical interface operating system

Coliy develops a set of revolutionary graphical interface operating system which breaks the style of traditional instrument, and the customer can use the R700 like using smart-phone, greatly simplifies the operation process.

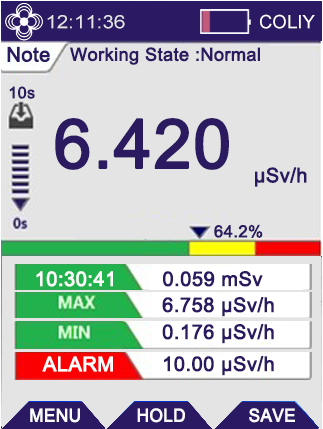

Style of display

Large and clarity touch screen can display real value, maximum, minimum alarm threshold, % and so on.

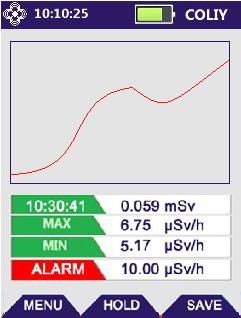

Trend Graph

Color LCD also can show trend graph. Customer can set X-axis from 1minutes to 30 minutes.



Probes Specification

Probe Mode

 Description

CS30A

NaI Scintillator Probe

Sensor: φ30x30mm NaI Crystal
Range:0.01-2500 µSv/h
Sensitivity:1µSv/h≥350cps(137Cs)

Energy response: 50keV-3MeV

Accuracy:≤±15%

CS75

Plastic scintillator probe

Sensor:  φ75x75mm Plastic scintillator

Range: 0.001µSv/h-200μSv/h

Energy response: 50keV-3MeV

Sensitivity: 1µSv/h≥1500cps(137Cs)

Resolution: 0.001µSv/h

GM30A

GM tube probe

Sensor: GM tube

Range: 0.01µSv/h-1000µSv/h

Energy response: 50keV-3MeV

Sensitivity: 1µSv/h≥7cps(137Cs)

Accuracy: ≤±15%

N10

H neutron gamma probe

Sensor:H neutron gamma ray detector  4π omnibearing

 Size:10×10×10(mm3)

Range: Neutron:0.1μSv/h -10mSv/h

             γ:0.01μSv/h~20mSv/h

 Sensitivity:Neutron:1µSv/h ≥0.5cps(252Cf)

 Energy response:0.025eV-16MeV

 Gamma suppression ratio:≥1000:1

N20

H neutron gamma probe
Sensor:H neutron gamma ray detector  4π omnibearing

 Size:20×20×20(mm3)

Range: Neutron:0.1μSv/h -10mSv/h

             γ:0.01μSv/h~10mSv/h

 Sensitivity:Neutron:1µSv/h ≥2.7cps(252Cf)

 Energy response:0.025eV-16MeV

 Gamma suppression ratio:≥1000:1

CS170

Large area Surface contamination detector

Sensor: ZnS+Plastic scintillator

Effective area:170²    Range:0-1Mcps

Energy range:α>3MeV  β>150keV

Detection efficiency:α≥24%(241Am);β≥30%(204TI)

Detection background:α≤ 0.1cps;β≤ 12cps

CS30D

Surface contamination detector

Sensor: ZnS+Plastic scintillator

Effective area: 30 cm    Counting range: 1~105

Detectionefficiency: α≥30%(to 239Pu); β≥25%

Detection background: Everyminute counts α≤3, β≤120

Relativebasic error: ≤±15%
