R100 type Xγ personal dose (rate) alarm
Download

Radiation Classification List

Detectable ray

Product mode

Sensor

Range

γ Sensitivity(Cs137,1µSv/h)

Characteristics

αβ

R700
 (ProbeCS170)

Zinc + plastic scintillator

1Mcps

--

Area used 170 cm2

R700
 (ProbeCS30D)

Zinc + plastic scintillator

1Mcps

--

Area used 30 cm2

αβγ

R500

Geiger counter

1mSv/h

7cps

Large end window cover leather

Unresolved ray category

910

Geiger counter

1mSv/h

2cps

Small end window cover leather

Unresolved ray category

R100

Geiger  counter

100mSv/h

2cps

Personal Dose Alarm, Energy range 20keV~3MeV

R750

Φ80x80mm

Plastic  scintillator

0.2mSv/h

2000cps

Environmental, ultra-high sensitivity

Energy range15keV~7MeV (±15%)

R700
  (ProbeCS75)

Φ75x75mm  Plastic scintillator

0.2mSv/h

1500cps

Environmental, high sensitivity

R700
  (ProbeCS30A)

Φ30x30mm NaI Crystal

1mSv/h

350cps

High efficiency for γ ray detection

1 second quick response

Neutronγ

R60N

10×10×10(mm3)

H  neutron gamma probe

10mSv/h(Neutron)
 20mSv/h(γ)

0.5 cps(Cf-252 )

One sensor can detect neutron and γ ray at  the same time

Gamma suppression  ratio:1000:1(137Cs)

Same volume, the sensitivity is 20 times higher than the 3He  sensor



20×20×20(mm3)

H  neutron gamma probe

2.7 cps(Cf-252 )

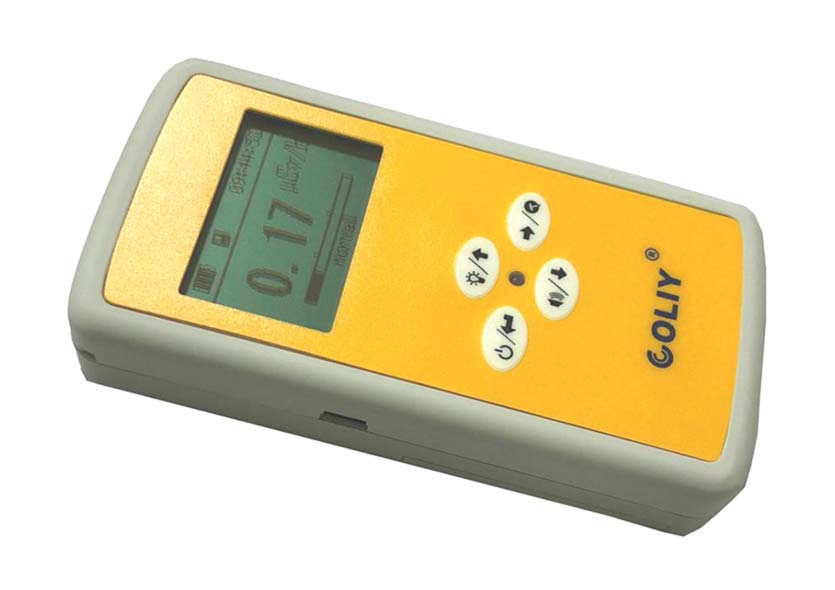

R100 type Xγ personal dose (rate) alarm

Description

The R100 χγ personal dose (rate) alarm is a radiation detector with high-performance microprocessor and high-sensitivity energy-compensated GM tube ,it has quick response to radiation of different energies . It fully considers the use in harsh environments, high-impact shock resistance, high temperature and low temperature, provides reliable and accurate measurement data, light weight, high strength body, very strong.R100 has the ability to measure the dose equivalent rate while accumulating the dose equivalent; with sound and light and vibration alarm function, the user can customize the alarm threshold and the dose equivalent reminder value according to actual needs. Through the host computer software R100 can also communicate with the computer, convenient for users to download, analyze and store the dose data.

R100 X γ personal dose (rate) alarm instrument can be widely used in nuclear power plants, environmental protection bureaus, anti-chemical units, entry and exit inspection and quarantine, customs personnel related radiation dose monitoring; irradiation plant, thickness gauge, non-destructive testing, level gauge, The nuclear scale is called the radiation dose monitoring of practitioners; it is engaged in radioactive treatment, nuclear technology application, uranium radium mine and other practitioners radiation dose detection.

Product Features

● High sensitivity, fast response

● With dose rate and cumulative dose over-limit alarm function

● Preset alarm threshold and alarm prompt mode

● Simultaneous measurement of dose equivalent rate and cumulative dose equivalent, split screen display

● Two AA dry battery power supply, with battery under voltage alarm function

● The clock display function, the data is saved after shutdown, and the clock runs as usual (the battery is not removed)

● USB data interface, can communicate with computer, equipped with personal dose management software

● Using single-chip technology, with many functions, small size, easy operation and easy to use

● Single instrument, can set 10 groups of user numbers, the function does not interfere with each other

Instrument Specification

Detector

GM counter tube (energy compensated)

Measuring range

Dose equivalent rate: 0.01μSv/h~99.9mS/h

Dose equivalent (cumulative dose): 0.00μSv~10Sv

Energy response

20keV~3MeV (≤±25%)

Sensitivity

1μSv/h≥2cps (relative to Cs137)

Display method

Liquid crystal display, dose equivalent rate (μSv/h) and dose equivalent (μSv)

Relative error

Dose equivalent rate ≤ ± 10%, dose equivalent ≤ ± 10%

Protection alarm response time

≤ 2 seconds (at the dose equivalent rate ≥ 15μSv / h)

Power consumption

<2.5mW,Continuous operation for up to 30 days

Dimensions

116(H)×60(W)×22(D)

net weight

76g (without battery)

Operating temperature

-10 ° C ~ 50 ° C

Relative humidity range

≤90%RH(40℃)
