Model

SA6

Performance Parameters

Number of Input Channels

6 channels, divided into 2  groups with 3 input channels each (data from 3-axis fluxgate sensors,  accelerometers or acoustic sensors)

Input Signal Range

±10V single-ended signal

Input Frequency Range

Magnetic Field SensorAccelerometer & Acoustic Sensor

Up to 1kHz

DC to 1kHz (DC coupling);  5Hz to 1kHz (AC coupling)

Resolution

24-bit high-precision A/D  converter

Sampling Rate

1–2000  sps; maximum sampling interval 1s

Storage

Capable  of collecting up to 700,000 sample data points (subject to computer storage  capacity)

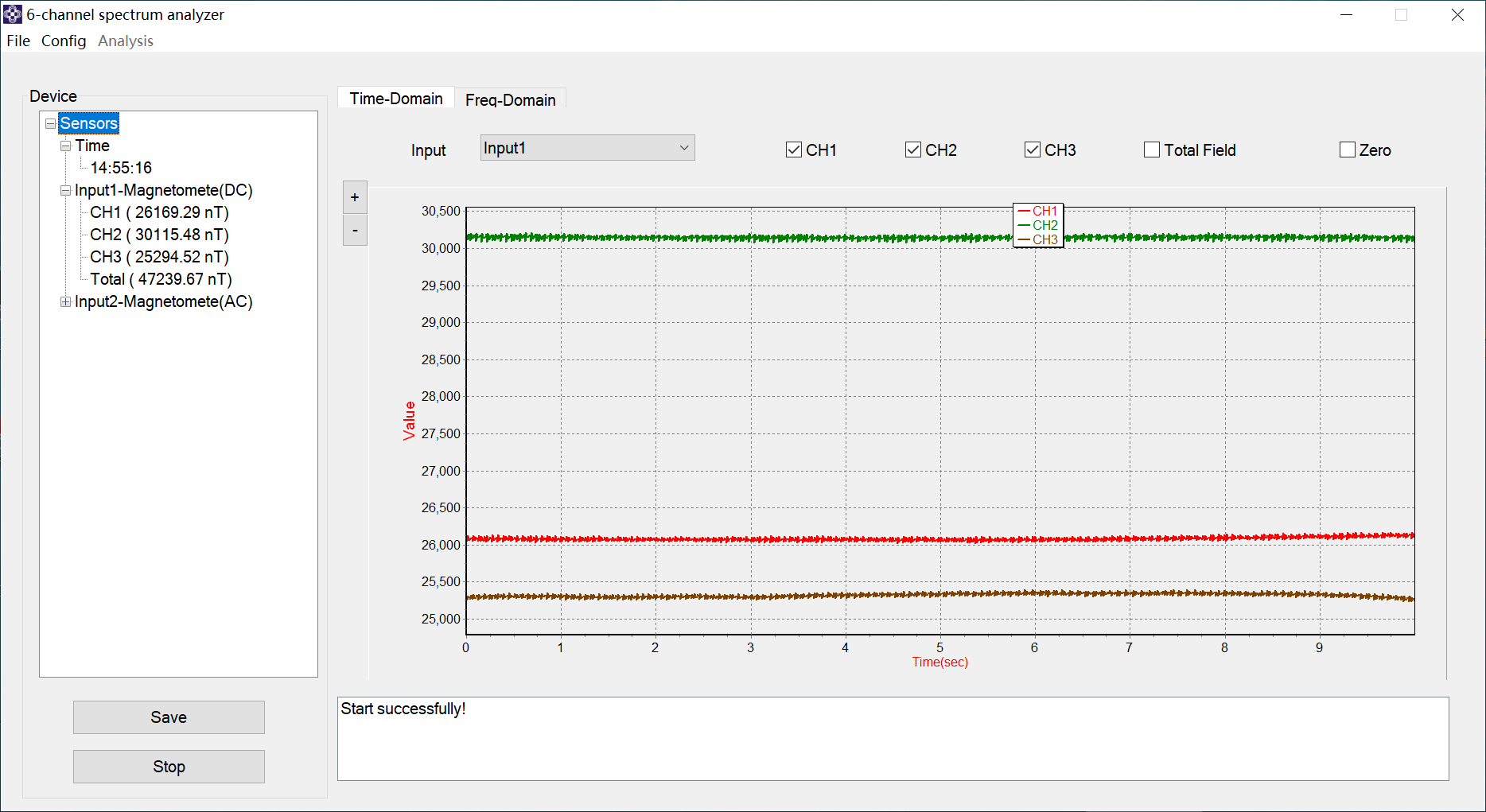

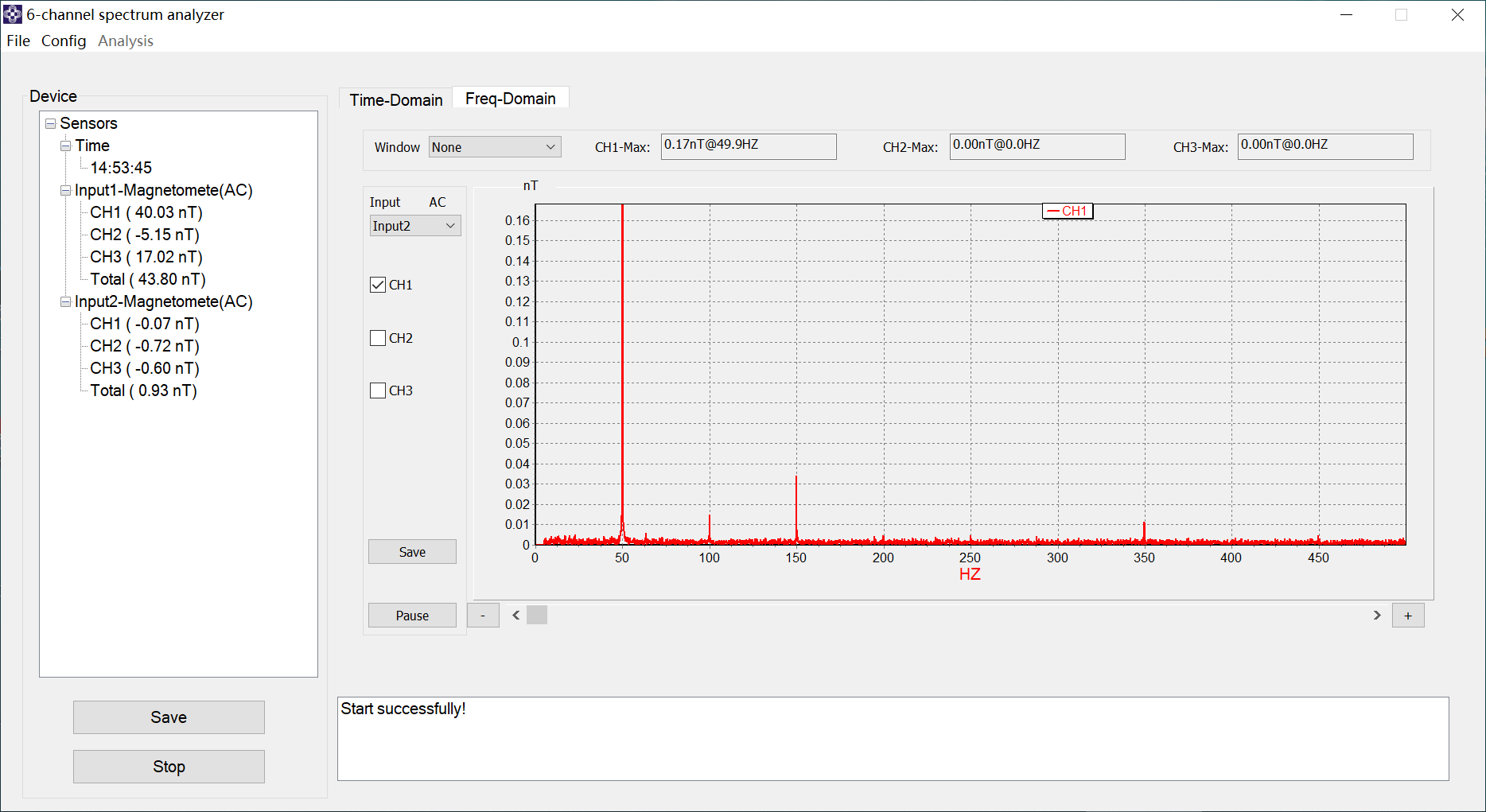

Frequency Domain Display Options:

DC data source & AC  data source

Analog Gain Control

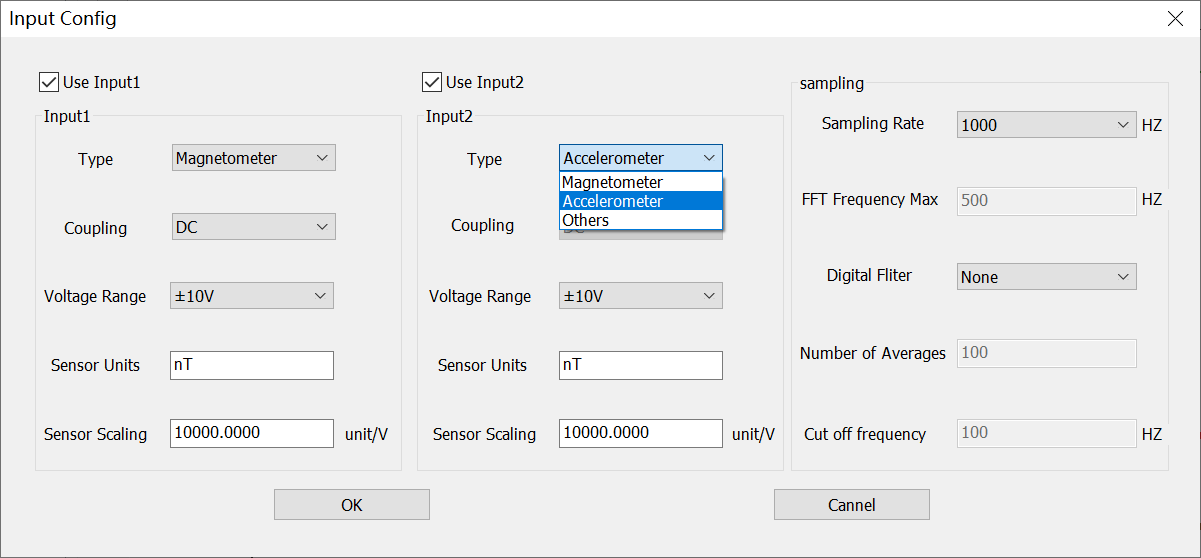

The voltage input range can  be selected on the software to obtain gains of 1×, 2×, 4×, 8×, 16×, 32×, 64×,  128× and 256×.

Spectrum Range

Sampling rate or maximum  frequency selectable via software

Sensor Input

Unbalanced (single-ended)

3-Axis Fluxgate Sensor

Power Supply: ±15V or customer-specified

Interface: 10-pin waterproof connectors

Output Signal: ±10V/axis (unbalanced,  single-ended referenced to 0V) or customer-specified

Examples: Bartington 3-axis fluxgate sensors  (Mag-03, Mag-13, Mag690); COLIY models (F901, F902, F905), etc.

Accelerometer

Signal Output Ratio: Customizable,  input via software

Input interface: BNCr

Examples: If an ICP™  piezoelectric accelerometer needs to be  connected, select ICP™ piezoelectric BNC when placing an order; if a  magnetoelectric accelerometer or a piezoresistive accelerometer needs to be  connected, select standard BNC when placing an order.

Acoustic Sensor or Other Sensors

Signal Output Ratio: Customizable, input  via software

Input interface: BNC

Note: Please select either ICP™  piezoelectric BNC or standard BNC when placing an order.

Environmental

Operating Temperature

-10℃ to +50℃

Storage Temperature

-20℃ to +70℃

Relative Humidity

0 to 90%  non-condensing

Specifications

Dimension

200mm W × 75mm H × 150mm L

Weight

1.25kg

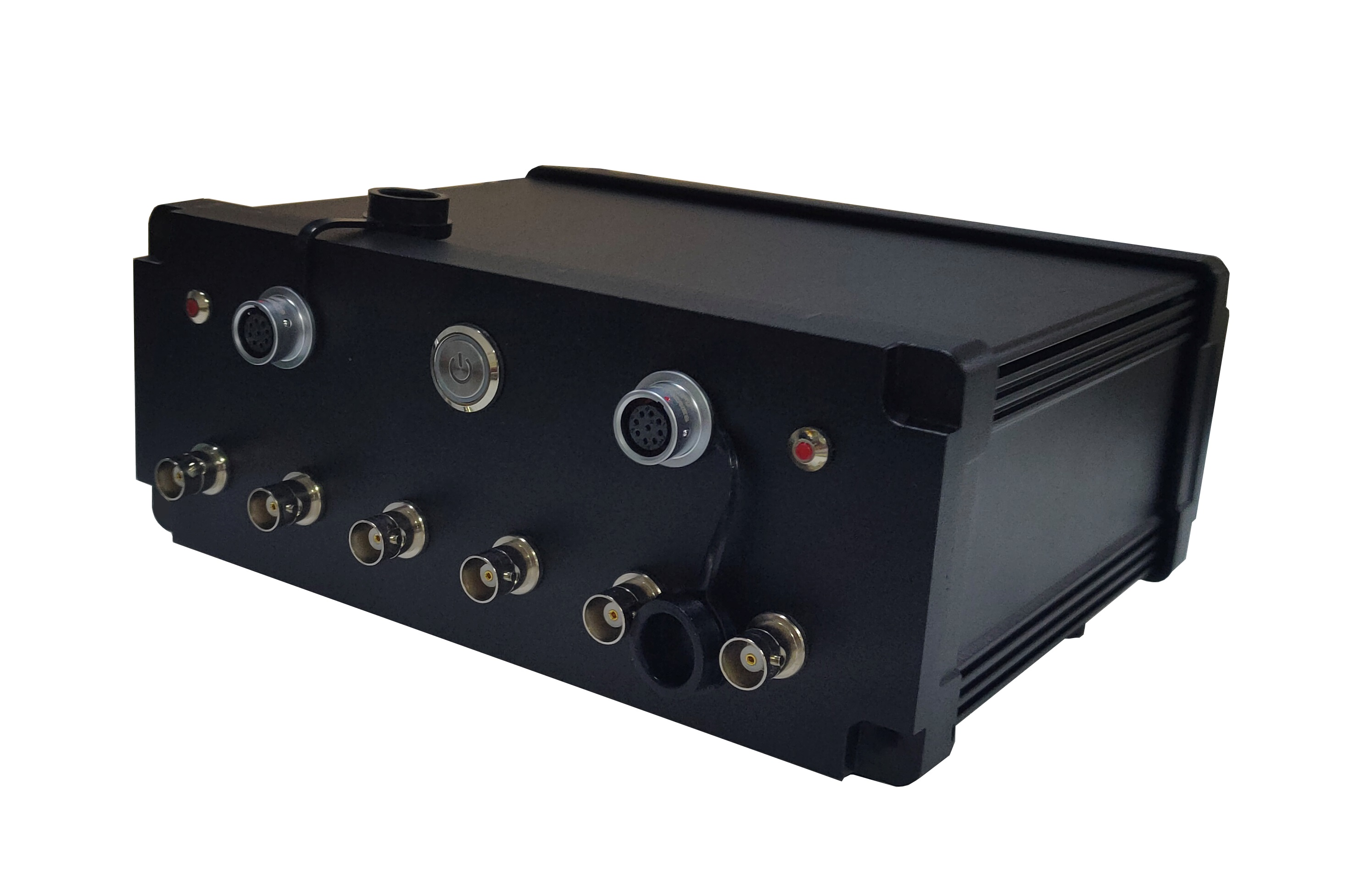

Output Interface

USB

Input Interface- 10-pin waterproof connectors

Quantity: 2 pcs

Function: to connect the 3-axis  fluxgate sensors

Model: WEIPU WS16-10 (default), Hirose  RM15TPD10P (optional)

Input Interface- BNC

Quantity: 6 pcs

Function: For connecting  accelerometers, acoustic sensors and other similar devices

Type: ICP^TM piezoelectric  BNC (default), Standard BNC (optional).

ICP^TM piezoelectric BNC–  equipped with a 4mA constant current source, suitable for connecting ICP^TM  piezoelectric accelerometers, ICP^TM piezoelectric acoustic sensors  and other such sensors.

Standard BNC – voltage input type without  power supply, suitable for connecting externally powered sensors (e.g.,  piezoresistive accelerometers) or passive sensors (e.g., magnetoelectric  accelerometers) and other sensors.

Enclosure

Aluminum alloy

Power Interface

USB TYPE-C, 5V 1A

Digital Output

USB TYPE A
